MW-C pulsed laser cleaning machine: grey cabinet on castors with the control panel on top and the fiber cable coiled on the side

Pulsed cleaners, 50–500 W

Pulsed Laser Cleaning Machine, MW-C50 to MW-C500

Models · MW-C50 · MW-C70 · MW-C100 · MW-C200 · MW-C500

A series of pulsed fiber laser cleaners for removing rust, paint, oil and oxide without harming the base metal. It suits mould shops, automotive and machining plants, and restoration work where the surface must stay intact. Models up to 100 W are air-cooled; the 200 W and 350 W models are water-cooled.

Laser power: 50–350W
Wavelength: 1064nm
Scan width: 10–80mm
Cooling: Air / water

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

Five models with 50, 70, 100, 200 or 350 W average laser power
Pulsed 1064 nm fiber laser with low heat input for precise, selective cleaning
Scan width of 10–80 mm, tolerating up to 20 mm of working-distance variation
Air-cooled up to 100 W; the 200 W and 350 W models are water-cooled
Handheld head, or automatic operation with a robot or fixture

Overview

The MW-C series uses a pulsed fiber laser to clean metal surfaces. Each pulse is absorbed by the contaminant layer, not the metal. The layer heats so fast that it forms a small expanding plasma, and the shock wave breaks the rust, paint or oxide into fragments that fly off. The pulses are short enough that heat does not build up, so the base metal is left largely unchanged.

This makes the MW-C series a good fit where blasting or grinding would damage the part. Examples are moulds, precision components, aluminium, and heritage objects. The beam can be aimed at a defined area with an exact size, so you clean only where you need to.

Configuration

Laser source: pulsed fiber laser at 1064 nm. Average power is 50, 70, 100, 200 or 350 W depending on the model.
Cooling: forced-air cooling on the MW-C50, MW-C70 and MW-C100. The MW-C200 and MW-C500 are water-cooled and include a water tank.
Cleaning head: handheld scanning head with a 10–80 mm scan width, fed by a fully enclosed fiber beam path.
Cabinet: mobile cabinet on castors with the control panel on top. Total power consumption ranges from 350 W (MW-C50) to 3500 W (MW-C500).

Typical applications

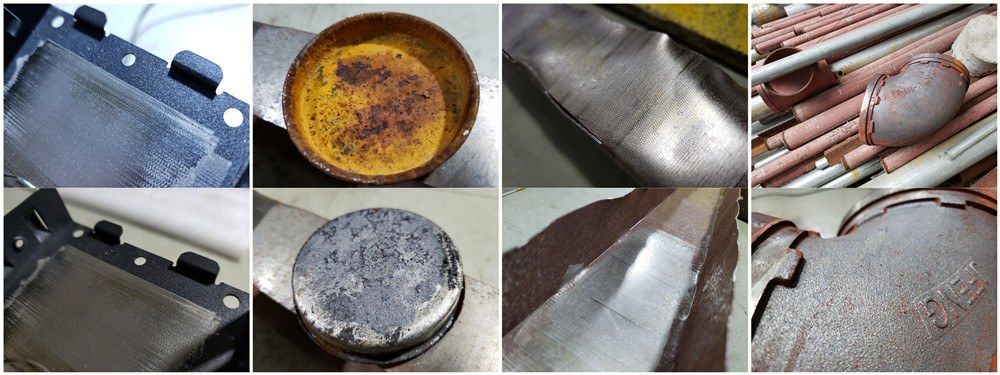

Cleaning moulds without abrasion or chemicals
Removing rust and paint from automotive and machined parts
Removing oxide layers from metal parts
Restoration of cultural relics
Maintenance in shipbuilding, food-processing and petrochemical plants
Removing graffiti and oil

Options and customization

Choice of five power levels and two cooling types
Handheld operation, or automatic operation with the head on a robot or fixture
Voltage and plugs to suit your country

The MW-C series has a 2-year whole-machine warranty, and we train your operators for free at our Wuhan factory.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Pulsed vs continuous laser cleaning

Data

Specifications

Pulsed Laser Cleaning Machine, MW-C50 to MW-C500 specifications
Model	MW-C50 / MW-C70 / MW-C100 / MW-C200 / MW-C500
Laser type	Pulsed fiber laser
Average laser power	50 / 70 / 100 / 200 / 350 W
Wavelength	1064 nm
Pulse frequency	20–100 kHz (MW-C50, MW-C70); 20–200 kHz (MW-C100); 20–50 kHz (MW-C200, MW-C500)
Cooling	Air (MW-C50, MW-C70, MW-C100); water (MW-C200, MW-C500)
Scan width	10–80 mm
Total power consumption	350 / 500 / 600 / 1000 / 3500 W
Dimensions	760 × 780 × 790 mm or 1100 × 950 × 700 mm, by model
Total weight	56 / 60 / 65 / 130 / 280 kg (water-cooled models include water tank)
Operation	Handheld or automatic
Working temperature	5–40 °C

Values are listed in model order, MW-C50 to MW-C500. The MW-C500 is rated at 350 W average power; confirm the exact output and dimensions for your model.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Carbon steel
Stainless steel
Aluminium
Mould steel
Cast iron

Applications

Mould cleaning
Automotive parts
Machining and electronics
Shipbuilding
Heritage restoration
Food-processing equipment
Petrochemical maintenance
Graffiti removal

FAQ

About this machine

Which model should I choose?

For light oxide, oil and thin paint on small parts, the air-cooled MW-C50 to MW-C100 are enough. They weigh 56–65 kg and draw 350–600 W. For larger areas or thicker rust, the water-cooled MW-C200 (200 W) and MW-C500 (350 W) give more average power. They weigh 130 and 280 kg including the water tank.

Will pulsed laser cleaning damage the base metal?

Each pulse is short, so heat has no time to build up in the part. The contamination absorbs the energy and breaks away, and the base metal is left largely unchanged. We still recommend a sample test on your own part to set the parameters.

How does it handle uneven surfaces?

The cleaning head tolerates up to 20 mm of working-distance variation. Cleaning is non-contact, so it reaches into steps and recesses that brushes and blasting miss.

Can it be automated?

Yes. The beam is delivered by optical fiber, so the head can be mounted on a robot or fixture and work at a distance. This helps with hard-to-reach or hazardous areas. Tell us about your parts and we will confirm the integration.

What consumables does it use?

It needs no abrasive, solvent or chemicals, and leaves no chemical residue. The machine runs on electricity, with 350 W to 3500 W total power depending on the model.
