MW-LC100 portable laser cleaner closed in its black wheeled hard case, with the emergency stop on top

Backpack and portable cleaners, 20–100 W

Portable 100 W Laser Cleaning Machine with Wheels (MW-LC100)

Models · MW-LC100

A 100 W pulsed fiber laser cleaner in a wheeled hard case of about 30 kg. It is built for small areas that need gentle, precise cleaning: rust, oxide, paint, plating and mould residue. It runs on a normal single-phase socket and draws no more than 500 W.

Laser power: 100W
Peak power: 8–10kW
Weight: 30kg
Fiber length: 3m

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

100 W pulsed fiber laser with 8–10 kW peak power
About 30 kg in a wheeled hard case of 380 × 270 × 575 mm
1.9 kg cleaning head on a 3 m fiber
Air-cooled; draws 500 W or less from single-phase 220 V
160 mm field lens as standard, with 160–330 mm lenses optional

Overview

The MW-LC100 is a compact laser cleaning system for small areas that need gentle, high-precision cleaning, de-coating or other surface treatment. A 100 W pulsed fiber laser produces 8–10 kW peak pulses. These remove rust, oxide, resin, oil, stains, dirt, coatings, plating and paint from metal parts of different shapes. It also removes deposits from carved stone and residue from rubber moulds.

No blasting media, chemicals or water are needed. You plug the machine into a normal socket and start cleaning. Power draw is 500 W or less.

Configuration

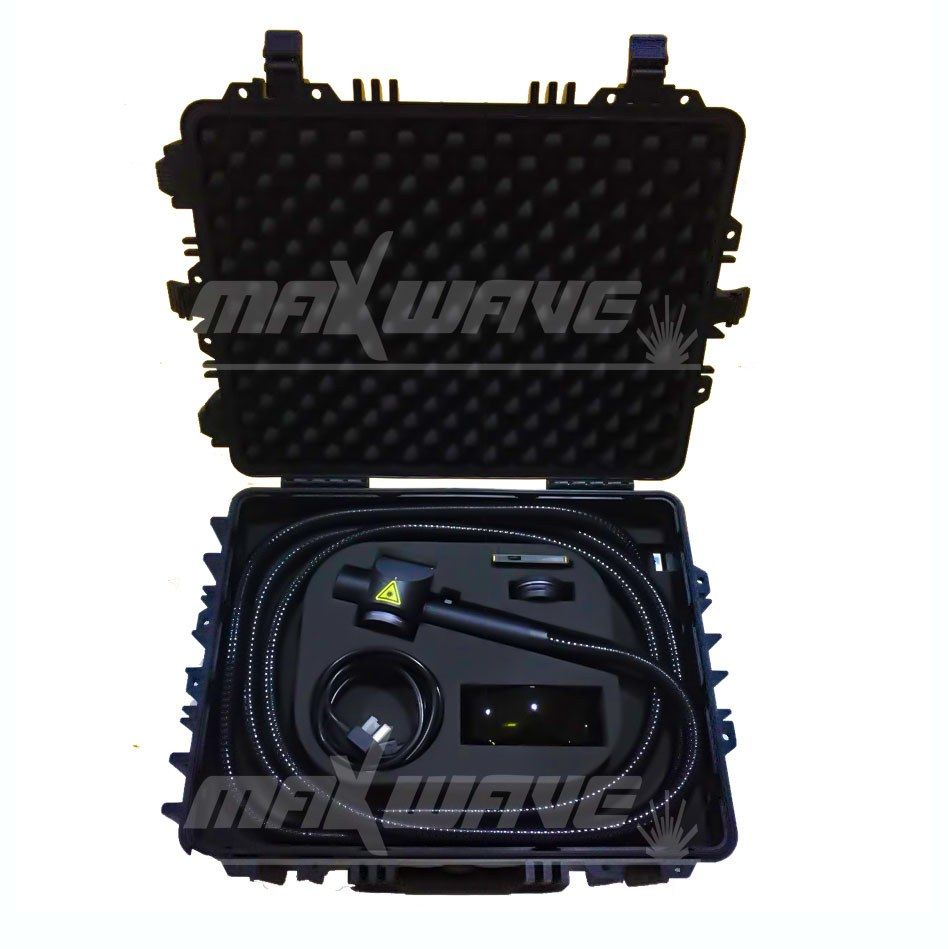

The system has four parts:

Laser source with its controls and air cooling, in a wheeled hard case of 380 × 270 × 575 mm and about 30 kg.
Fiber cable, 3 m long, which delivers the beam.
Cleaning head, about 1.9 kg with the isolator. The scan length and width can be set separately.
Field lens, 160 mm focal length as standard.

Power is adjustable from 10 to 100 % in steps. The head can be held by hand or mounted for automated work. With few parts and no media to refill, the system is easy to operate and needs very little upkeep between jobs.

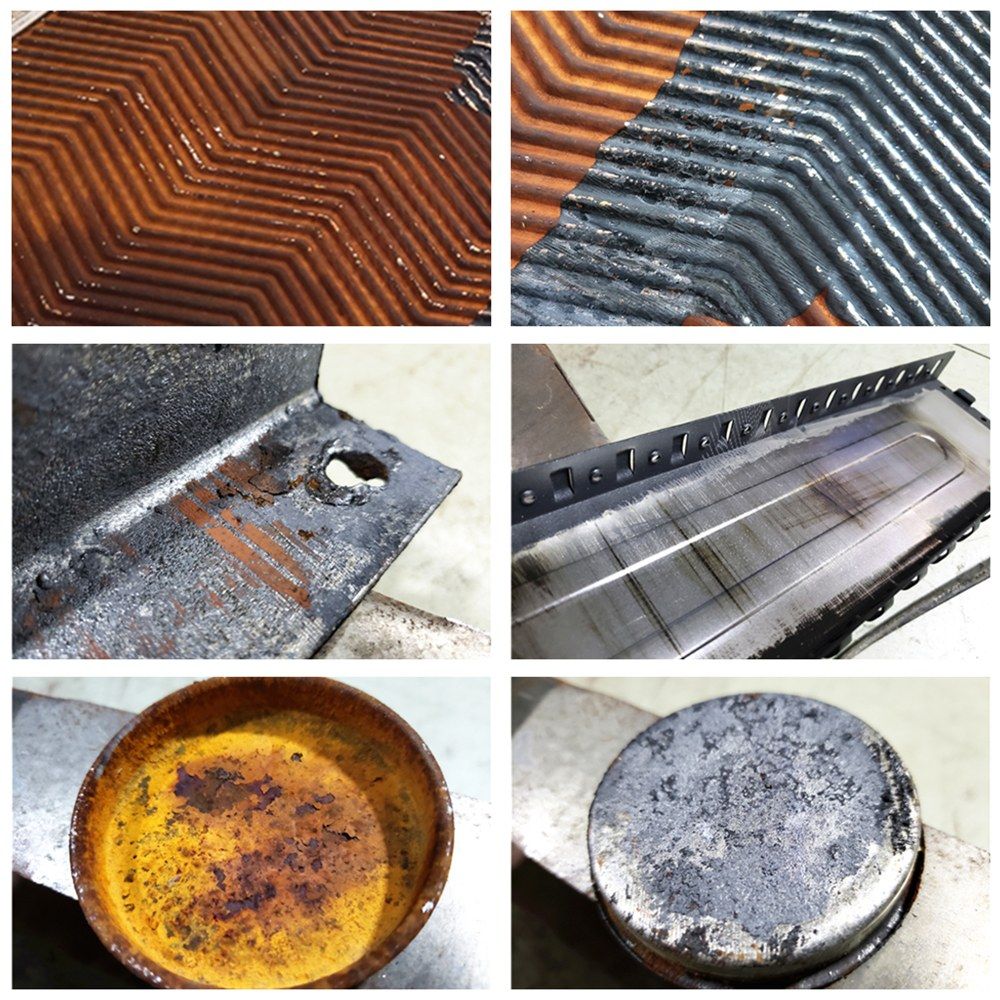

Typical applications

Removing rust and oxide from tools, fittings and machine parts
Stripping paint, coatings and plating from small areas
Cleaning residue from rubber moulds
Removing deposits from stone carvings

Options and customization

Field lenses from 160 to 330 mm focal length
Supply voltage from 110 V to 380 V, with plugs to suit your country
Handheld or automated operation

The MW-LC100 has a 2-year whole-machine warranty, and operator training at our Wuhan factory is free.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Pulsed vs continuous laser cleaning

Data

Specifications

Portable 100 W Laser Cleaning Machine with Wheels (MW-LC100) specifications
Model	MW-LC100
Laser type	Pulsed fiber laser
Laser power	100 W
Max. peak power	8–10 kW
Power adjustment range	10–100 %, stepped
Fiber length	3 m
Cooling	Air cooling
Scan range	Length and width adjustable separately
Field lens focal length	160 mm (160–330 mm optional)
Supply voltage	Single-phase 220 V ±10 %, 50/60 Hz (110–380 V on request)
Power consumption	≤ 500 W
Machine size (without wheels)	380 × 270 × 575 mm
Machine weight	About 30 kg
Cleaning head weight	About 1.9 kg (with isolator)
Working temperature	5–40 °C
Operation	Handheld or automated

Confirm the laser power and configuration for your order; voltage can be set from 110 to 380 V.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Carbon steel
Stainless steel
Aluminium
Stone
Rubber moulds

Applications

Rust and oxide removal
Paint and coating stripping
Plating removal
Mould residue cleaning
Stone carving cleaning
Small-area surface preparation

FAQ

About this machine

How portable is it?

The machine weighs about 30 kg and measures 380 × 270 × 575 mm without wheels. It rolls on its own wheels, and the cleaning head weighs about 1.9 kg.

What power supply does it need?

Standard is single-phase 220 V ±10 %, 50/60 Hz, and it draws 500 W or less. We can build it for 110 V up to 380 V.

Can I change the working distance?

Yes. The standard field lens has a 160 mm focal length. Lenses from 160 to 330 mm are available for a longer working distance or a different spot size.

Is it suitable for cleaning rubber moulds?

It is designed for gentle, precise cleaning, and it removes residue from rubber moulds. Send us a sample or photos of your mould and we will confirm the settings.
