A3 DTF printer with ink tank housing and a compact curing oven on top

UV flatbed printers

A3 DTF Printer, Epson L1800 (CMYK + White)

Models · MW-A3 L1800 · A3 1390

A desktop direct-to-film (DTF) printer that prints designs on PET film for heat transfer onto T-shirts, hoodies, bags and shoes. It prints A3 sheets (297 × 420 mm) or 30 cm roll film in CMYK plus two white channels at 2880 × 1440 dpi, with a white-ink circulation system to keep the white flowing. Unlike our UV flatbed printers, it does not print on the object itself: you transfer the film to fabric with powder, a curing oven and a heat press.

Print size
297 × 420mm
Resolution
2880 × 1440dpi
Colours
CMYK + 2 W
Net weight
17kg
Get a quote Test my part on it
  • 2-year whole-machine warranty
  • Free operator training
  • Built to order: voltage, plug, labels
  • Prints A3 sheets or 30 cm × 100 m roll film
  • CMYK + 2 white at 2880 × 1440 dpi
  • White-ink circulation system
  • About 6 minutes per A3 print at 2880 dpi (L1800 version)
  • Temperature and humidity display; front buttons for powder, ink, paper and delete

Overview

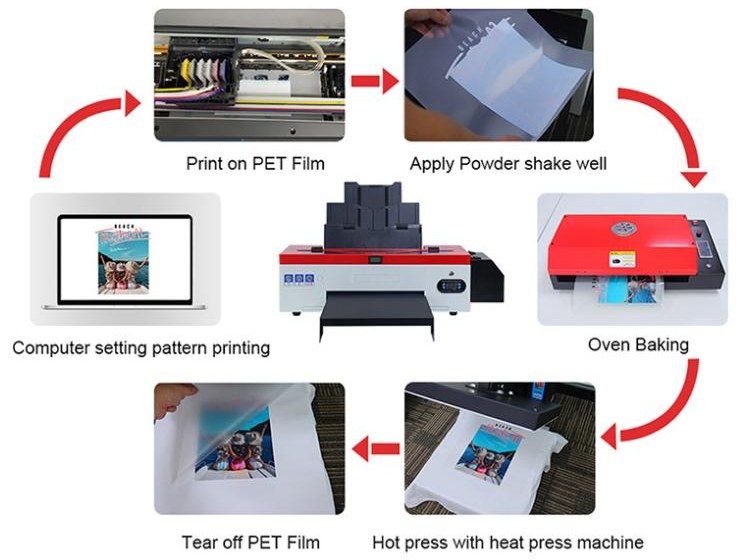

A DTF (direct-to-film) printer prints your design in reverse onto PET film instead of onto the garment. You then cover the wet print with hot-melt powder, cure it in an oven and press it onto the fabric with a heat press. Peel off the film and the design stays on the garment. Because the transfer sits on top of the fabric, it works on many fabric types and colours.

This A3 printer prints sheets up to 297 × 420 mm or 30 cm wide roll film up to 100 m long. It uses CMYK plus two white channels at 2880 × 1440 dpi. A white-ink circulation system keeps the white ink moving, so it flows smoothly and prints continuously. An A3 print takes about 6 minutes at 2880 dpi on the L1800 version.

Configuration

  • Head: Epson L1800 (an A3 1390 version is also listed).
  • Ink: CMYK + 2 W DTF ink, with white circulation and an ink damper.
  • Controls: front buttons for powder, ink, paper and delete; temperature and humidity display on the top cover.
  • Maintenance: waste-ink pad and bottle at the rear.
  • Software: RIP.
  • Size and weight: 780 × 320 × 220 mm, 17 kg; ships at 50 kg in an 850 × 420 × 510 mm wooden case.

Typical applications

Custom T-shirts and hoodies, bags and totes, shoes and other small-batch apparel for print shops, online stores and promotional merchandise. To print directly onto hard items such as phone cases, bottles or signs, choose one of our UV flatbed printers instead.

Options and customization

  • L1800 or 1390 version.
  • Plug and voltage to suit your country.

Free training is available at our factory in Wuhan.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Wall printer buyer’s guide

Data

Specifications

A3 DTF Printer, Epson L1800 (CMYK + White) specifications
VersionsA3 L1800 DTF; A3 1390 DTF
Print headEpson L1800
ColoursCMYK + 2 × white
Resolution2880 × 1440 dpi
Print speedAbout 6 min per A3 at 2880 dpi (L1800); about 7 min (1390)
Print size297 × 420 mm sheets or 30 cm × 100 m roll film
Print mediaPET transfer film for any fabric
White inkCirculation system
SoftwareRIP
ControlsPowder, ink, paper and delete buttons; temperature and humidity display
Machine size (L × W × H)780 × 320 × 220 mm
Net weight17 kg
Packing size (L × W × H)850 × 420 × 510 mm, wooden case
Packed weight50 kg

The old page shows the printer with a compact curing oven; confirm what ships with your order and the supply voltage.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

  • Fabric
  • PET transfer film

Applications

  • Custom T-shirts and hoodies
  • Bags and totes
  • Shoes
  • Small-batch apparel printing

FAQ

About this machine

What else do I need besides the printer?

DTF transfer powder, a curing oven and a heat press. The process is: print on PET film, apply powder and shake off the excess, bake in the oven, heat-press onto the garment, then peel off the film.

Which fabrics can I decorate?

The transfers go onto any fabric: T-shirts, hoodies, bags and shoes are typical. Test new fabrics with a sample press first.

What is the difference between the L1800 and 1390 versions?

Both are A3 DTF printers with CMYK + 2 white. The old sheet gives about 6 minutes per A3 print at 2880 dpi for the L1800 version and about 7 minutes for the 1390 version.

Can it print from a roll?

Yes. Besides A3 sheets it takes 30 cm wide roll film up to 100 m long.
