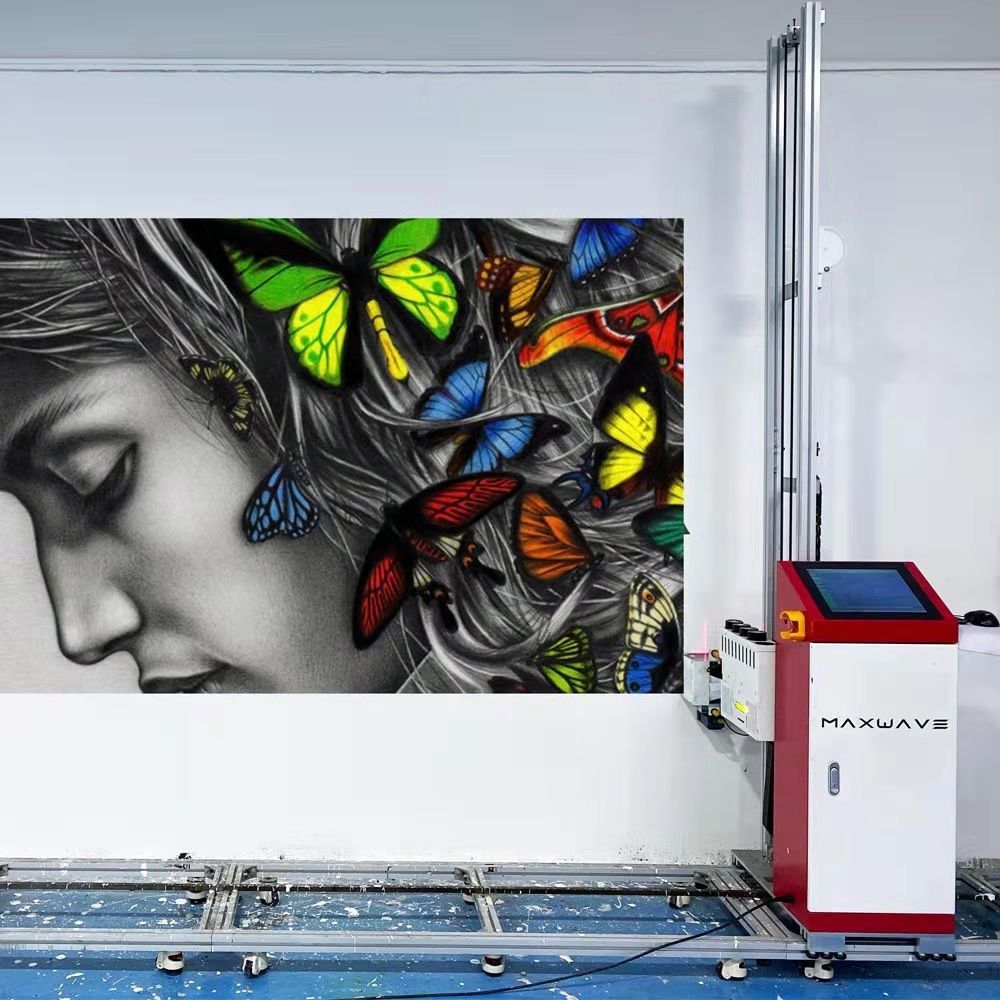

Track-rail 3D wall printer with labelled parts: vertical rails, ink bottle, print head, control panel, motherboard, floor rails and guide chain

Vertical wall printers

3D Wall Printer with Track Rails (Water-Based or UV Ink)

A track-rail vertical wall printer that you configure to order: water-based or UV ink, one or two Epson heads (DX10, DX7 or 4720), CMYK or CMYK + white, and a built-in PC or laptop control. It prints 2.5 m high as standard and up to 3.5 m, with unlimited width, and works from 0 to 50 °C. It is the most configurable printer in the range, and the water-based ink option suits low-odour interior work.

Print height
2.5–3.5m
Ink
Water-based or UV
Resolution
Up to 2880dpi
Net weight
60kg
Get a quote Test my part on it
  • 2-year whole-machine warranty
  • Free operator training
  • Built to order: voltage, plug, labels
  • Water-based wall ink or UV ink, chosen when you order
  • Single or double Epson head: DX10, DX7 or 4720
  • Built-in PC or laptop control
  • 2.5 m print height standard, up to 3.5 m; width unlimited
  • Long track rails for outdoor walls and large images

Overview

This vertical wall printer runs on long track rails and is built to order. You choose the ink (water-based or UV), the number of heads (one or two), the head model (Epson DX10, DX7 or 4720), the colours (CMYK or CMYK + white) and the control (built-in PC or your own laptop).

The printer prints 2.5 m high as standard and up to 3.5 m, with unlimited width. For taller walls, raise it on scaffolding and print in stages. Resolution modes run from 360 × 720 dpi for fast drafts to 2880 dpi for fine detail. Speed is 10 m²/h in draft mode, 8 m²/h in standard mode and 5 m²/h in high-resolution mode.

Configuration

  • Ink: water-based wall ink (CMYK) or UV ink (CMYK or CMYK + white).
  • Heads: Epson DX10, DX7 or 4720, single or double.
  • Control: built-in PC or laptop; Windows XP to 10; English or Chinese software.
  • Files: PSD, CDR, JPEG, PNG, BMP, TIFF, EPS, AI and PDF.
  • Data link: USB 3.0.
  • Size and weight: 1600 × 530 × 370 mm, 60 kg net, 165 kg gross, 1.6 m³ packed.
  • Working range: 0–50 °C, 10–70 % relative humidity.

All parts ship with the machine, ready to use, with an English manual and video instructions.

Typical applications

Outdoor murals, 3D-effect murals, large advertising walls and interior feature walls. The long rails support large images and outdoor set-ups.

Options and customization

  • Ink: water-based or UV.
  • Head model and single or double head.
  • Built-in PC or laptop.
  • Print height up to 3.5 m.
  • Voltage and plug to suit your country.

Every printer comes with our 2-year whole-machine warranty, free training at our factory in Wuhan and online engineer support.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Wall printer buyer’s guide

Data

Specifications

3D Wall Printer with Track Rails (Water-Based or UV Ink) specifications
InkWater-based wall ink (CMYK) or UV ink
Colours4 colours (CMYK) or 5 colours (CMYK + white)
Print headEpson DX10, DX7 or 4720; single or double head
ControlBuilt-in PC or laptop
Print size2.5 m high standard, 3.5 m max × unlimited width
Resolution360 × 720, 720 × 720, 720 × 1080, 720 × 1440 or 2880 dpi
Print speedDraft 10 m²/h; standard 8 m²/h; high resolution 5 m²/h
Data interfaceUSB 3.0
Software languageEnglish, Chinese
Image formatsPSD, CDR, JPEG, PNG, BMP, TIFF, EPS, AI, PDF
Operating systemWindows XP, 7, 8, 10
Operating environment0–50 °C, 10–70 % RH, non-condensing
Storage environment−21 to 60 °C, 10–70 % RH, non-condensing
Machine size (L × W × H)1600 × 530 × 370 mm
Net weight60 kg
Gross weight165 kg
Package volume1.6 m³

Speed and colours depend on the head and ink you choose; confirm the configuration with us.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

  • Interior painted walls
  • Exterior walls

Applications

  • Outdoor murals
  • 3D-effect murals
  • Large advertising walls
  • Interior feature walls

FAQ

About this machine

Should I choose water-based or UV ink?

Water-based ink suits painted interior walls and has less odour. UV ink cures instantly and bonds to harder surfaces such as tile and glass, and resists wear outdoors. Tell us your main surfaces and we will advise.

Can it print higher than 3.5 m?

The mast prints up to 3.5 m. For taller walls you can raise the printer on scaffolding and print in stages to 4 m or more.

Built-in PC or laptop: what is the difference?

The built-in PC keeps everything in the machine, so there is less to carry. The laptop version lets you use your own computer. Both run Windows.

Can it be used outdoors?

Yes. The track rails make set-up on outdoor ground easier, and the printer works from 0 to 50 °C in non-condensing conditions.

What comes with the machine?

All parts needed to start printing, an English manual and video instructions.
