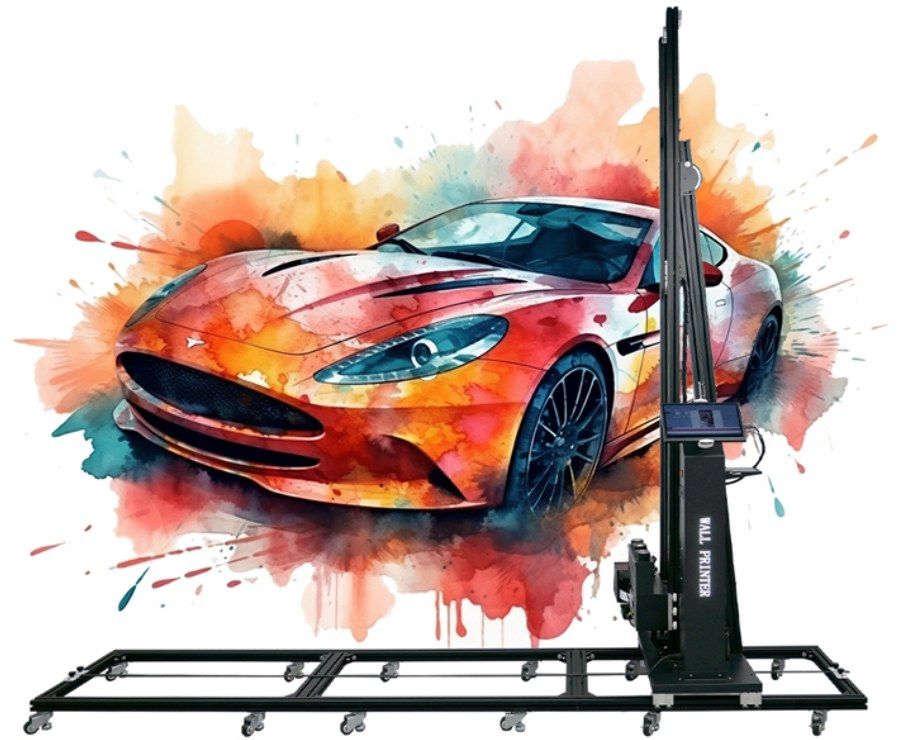

3D UV wall printing machine with black Wall Printer tower on a four-section floor rail

Vertical wall printers

3D UV Wall Printing Machine, Track Type (CMYK + 2 White)

A track-type UV wall printer with a slim black tower, a touch screen and a floor rail made of four 1 m sections. It runs six ink channels (CMYK plus two white) with an air-cooled UV lamp, prints 2.5 m high as standard (3 m optional) with unlimited width, and weighs 70 kg. Choose it over the 45 kg wheel-type printer when you want a fixed rail for long, straight murals and extra white output for dark walls.

Print height
2.5–3m
Ink channels
CMYK + 2 W
Resolution
2880dpi
Machine weight
70kg
Get a quote Test my part on it
  • 2-year whole-machine warranty
  • Free operator training
  • Built to order: voltage, plug, labels
  • Six ink channels: CMYK plus two white
  • Floor rail of four 1.0 m sections; can also run without the rail
  • Air-cooled UV lamp and red-light positioning
  • Touch screen running Windows 7 to 10
  • Choice of Epson DX10, DX7, I1600 or 4720 heads

Overview

This track-type printer prints murals directly onto walls with UV ink. The black tower stands on a floor rail of four 1.0 m sections. The print carriage moves up and down the tower, and the tower steps along the rail band by band. Standard print size is 2.5 m high by 6 m wide; a 3 m print height is available, and width is unlimited when you move the rail along the wall.

The ink system has six channels: cyan, magenta, yellow, black and two white. White lets you print bright colours on dark or coloured walls. An air-cooled UV lamp cures the ink as it prints, so the surface is dry and scratch-resistant straight away.

Configuration

  • Heads: Epson DX10, DX7, I1600 or 4720, chosen when you order.
  • Ink: UV ink, CMYK + 2 W.
  • Curing: air-cooled UV lamp on the carriage.
  • Positioning: red-light positioning and image partition printing for very large images.
  • Control: touch screen with Windows 7 to 10; works with common design software. USB 3.0 data link.
  • Frame: tower height 2.5–4.0 m depending on print height; base depth 80 cm.
  • Power: single-phase AC 110–220 V, 50/60 Hz, 2000 W.
  • Weight: 70 kg machine; 120 kg packed in a 117 × 75 × 75 cm wooden case.

Typical applications

Decorative murals in homes, hotels and restaurants; advertising walls; murals on dark or coloured walls. The printer handles putty walls, painted walls, tiled walls, diatom mud, canvas, paper, glass, ceramic, wood and metal. Speed is 8 m²/h in draft and standard modes and 5 m²/h in high-resolution mode.

Options and customization

  • Head type: DX10, DX7, I1600 or 4720.
  • Print height: 2.5 m or 3 m.
  • With or without the floor rail.
  • Voltage and plug to suit your country.

Every printer comes with our 2-year whole-machine warranty and free training at our factory in Wuhan.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Wall printer buyer’s guide

Data

Specifications

3D UV Wall Printing Machine, Track Type (CMYK + 2 White) specifications
Print headEpson DX10, DX7, I1600 or 4720 (option)
Ink channelsCMYK + 2 × white
InkUV ink
UV curingAir-cooled UV lamp
Print size2.5 m × 6 m standard; 3 m high optional; width unlimited
Machine height2.5–4.0 m
Floor rail4 sections × 1.0 m; base depth 80 cm; rail optional
Ink droplet3.0 pl
Resolution2880 dpi
Print speedDraft 8 m²/h; standard 8 m²/h; high resolution 5 m²/h
PositioningRed-light positioning, digital image partition
ControlTouch screen, Windows 7–10
Data interfaceUSB 3.0
Power supplySingle-phase AC 110–220 V, 50/60 Hz, 2000 W
Operating temperature10–35 °C
Machine weight70 kg
Packed weight120 kg
Packing size117 × 75 × 75 cm, wooden case

Head choice affects price and speed. Confirm head type and print height for your order.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

  • Wall putty
  • Painted walls
  • Tiled walls
  • Diatom mud walls
  • Canvas
  • Paper
  • Glass
  • Ceramic
  • Wood
  • Metal

Applications

  • Home, hotel and restaurant decoration
  • Large murals on long walls
  • Murals on dark or coloured walls
  • Advertising walls

FAQ

About this machine

Why two white channels?

The six-channel set-up (CMYK + 2 W) gives more white output, which helps when you print bright colours on dark or coloured backgrounds.

How long is the rail?

The standard floor rail has four 1.0 m sections. Width is unlimited: you move the rail along the wall for longer murals. The printer can also run without the rail.

What surfaces can it print on?

Putty and painted walls, tiled walls, diatom mud walls, canvas, paper, glass, ceramic, wood and metal. Test a small area on unusual surfaces first.

How does it compare with the wheel-type printer with guide rails?

This model weighs 70 kg and runs on a fixed rail with six ink channels. The wheel-type model weighs 45 kg, can roll on wheels or rails and prints 3 m high in CMYK or CMYK + white.
