MW-LC50 backpack laser cleaner in a red and grey housing with a front screen and safety-glasses label, three-quarter view

Backpack and portable cleaners, 20–100 W

Backpack Laser Cleaning Machine 20 / 30 / 50 W (MW-LC50)

Models · MW-LC50

A low-power pulsed fiber laser cleaner in a backpack housing. It removes paint, oil, resin, light rust and coatings without chemicals, media, dust or water. It is the entry point to laser cleaning: plug it in, switch it on and start cleaning.

Laser power: 20–50W
Beam width: 10–100mm
Scan speed: ≤ 7000mm/s
Fiber length: 3m

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

20, 30 or 50 W pulsed fiber laser with 8–10 kW peak power

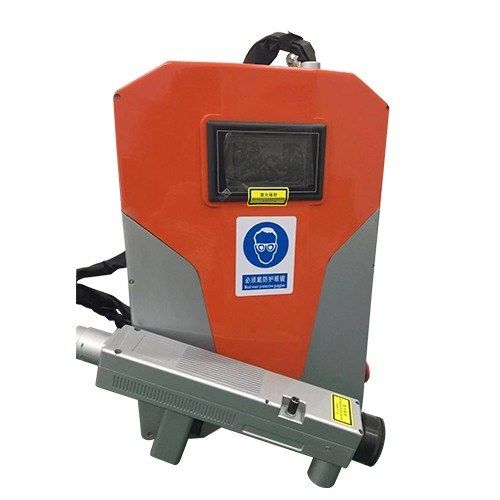

Backpack housing with shoulder straps; handheld cleaning head on a 3 m fiber
Beam width of 10–100 mm, with scan speed up to 7000 mm/s
Air-cooled; single-phase 220 V, or 110–380 V on request
Works without chemicals, blasting media or water

Overview

The MW-LC50 puts a pulsed fiber laser cleaner in a backpack housing for light cleaning jobs. It removes resin, oil stains, rust, coatings and paint from the surface of a part. It uses no detergent, blasting media or water and makes no dust, so there is nothing to collect or dispose of afterwards.

Setup is simple. You connect the power, switch on and start cleaning. The cleaning head can be held by hand or mounted for automated work, which makes the machine easy to fit into a production step later.

Configuration

Laser: pulsed fiber laser at 20, 30 or 50 W, with 8–10 kW peak power. Power is adjustable from 10 to 100 %.
Cleaning head: handheld scan head on a 3 m fiber. The beam width is adjustable from 10 to 100 mm, and you can set the scan length and width separately. Scan speed goes up to 7000 mm/s.
Optics: 160 mm field lens as standard, with 160–330 mm lenses optional.

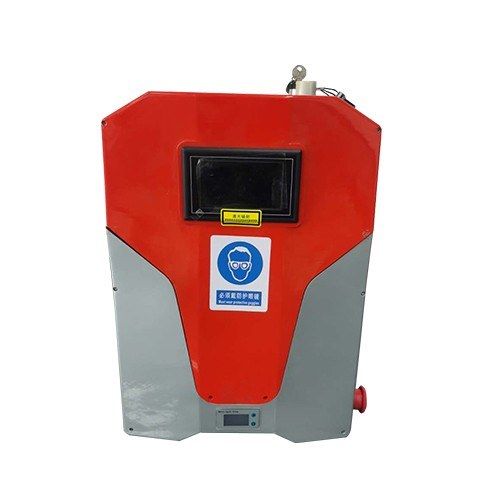

Housing: red and grey backpack housing with shoulder straps, a front screen, a key switch, an emergency stop and a small digital display. Listed size is 450 × 350 × 500 mm.
Cooling and power: air-cooled. It runs on single-phase 220 V ±10 %, 50/60 Hz.

Typical applications

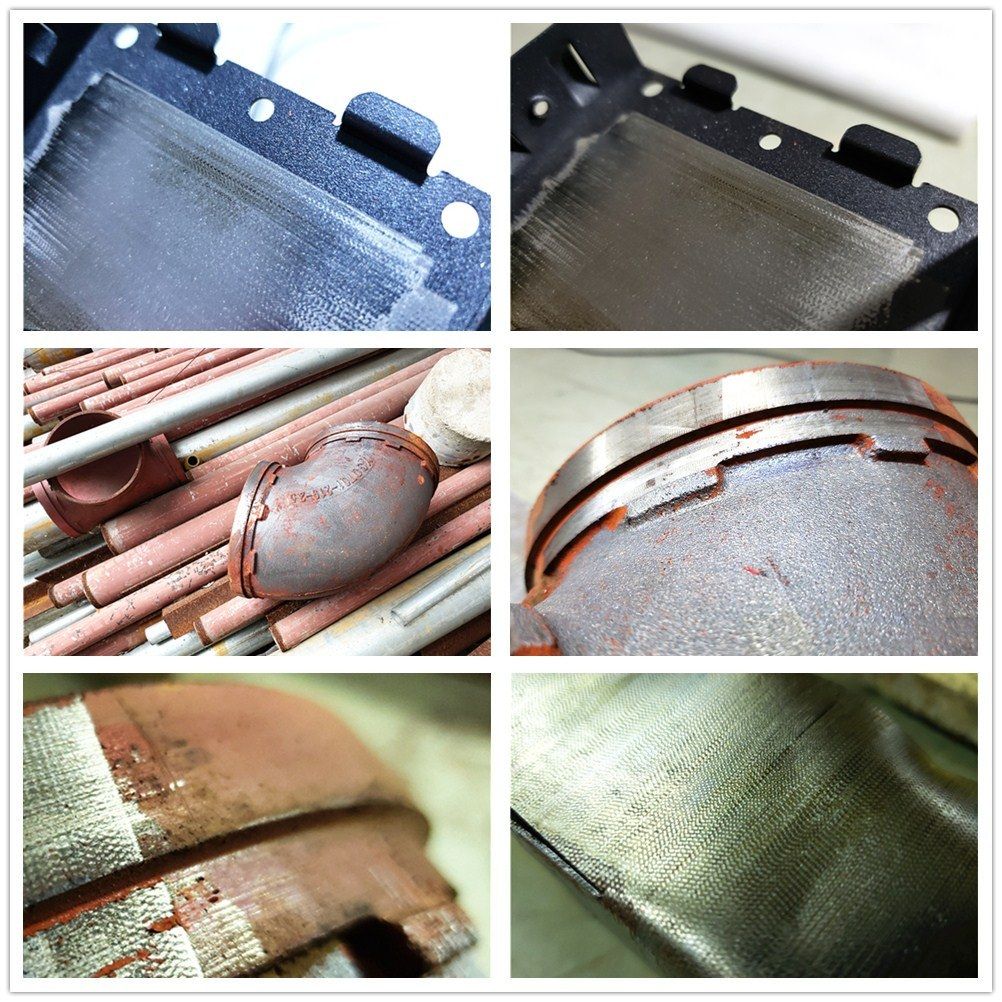

Removing paint and coatings from small metal parts
Cleaning oil stains and resin residue from tools and components
Removing light rust during maintenance
Cleaning curved surfaces gently

Options and customization

Laser power of 20, 30 or 50 W
Field lenses from 160 to 330 mm focal length
Supply voltage from 110 V to 380 V, with plugs to suit your country
Handheld or automated setup

The MW-LC50 has a 2-year whole-machine warranty, and operator training at our Wuhan factory is free.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Pulsed vs continuous laser cleaning

Data

Specifications

Backpack Laser Cleaning Machine 20 / 30 / 50 W (MW-LC50) specifications
Model	MW-LC50
Laser type	Pulsed fiber laser
Laser power	20 / 30 / 50 W
Max. peak power	8–10 kW
Power adjustment range	10–100 %, stepped
Beam width	10–100 mm
Scan speed	0–7000 mm/s
Scan range	Length and width adjustable separately
Field lens focal length	160 mm (160–330 mm optional)
Fiber length	3 m
Cooling	Air cooling
Supply voltage	Single-phase 220 V ±10 %, 50/60 Hz (110–380 V on request)
Machine size	450 × 350 × 500 mm
Machine weight	About 30 kg
Working temperature	5–40 °C
Operation	Handheld or automated

Weight and cleaning rate vary by power option; confirm with us for your configuration.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Carbon steel
Stainless steel
Aluminium

Applications

Paint removal
Oil and grease removal
Resin residue removal
Light rust removal
Coating removal on small parts

FAQ

About this machine

Which power should I choose: 20, 30 or 50 W?

All three remove oil, resin, paint and light rust. More power cleans faster and copes better with thicker layers, so choose 50 W if you are unsure. For heavy rust or large areas, look at our 50–100 W backpack or our pulsed cabinet cleaners.

Does it need water or chemicals?

No water or chemicals. The laser is air-cooled and the process uses no blasting media or detergent. You plug it in, switch it on and start cleaning.

How far can I reach from the unit?

The cleaning head is on a 3 m fiber cable. Because you wear the unit on your back, you can move around the part freely.

Can it clean curved surfaces?

Yes. The beam width is adjustable from 10 to 100 mm, and the field lens can be changed between 160 and 330 mm focal length. This lets you work on curved and uneven parts. We recommend a sample test for complex shapes.
