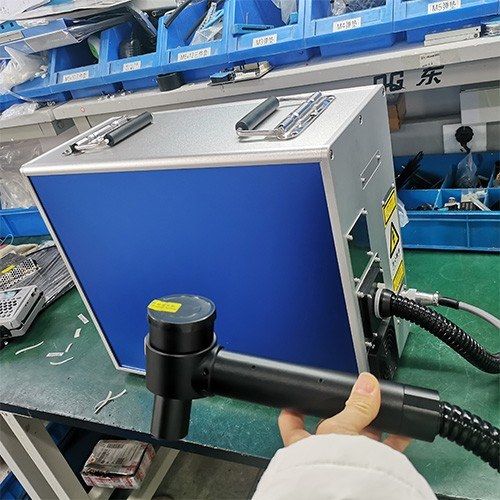

MW-LS50 portable laser cleaner: compact steel housing with top handle, front switches and emergency stop, and a handheld scanning head on an armoured fiber cable

Backpack and portable cleaners, 20–100 W

Portable 50 W Laser Rust Removal Machine (MW-LS50)

Models · MW-LS50

A 20 kg, 50 W fiber laser cleaner for precise rust, oxide and coating removal on small areas. It works stand-alone as soon as it is switched on, with no computer needed. A 2.5 kg handheld head with a Sino-Galvo scanner cleans tracks 1–20 mm wide and up to 100 mm long.

Laser power: 50W
Net weight: 20kg
Clean width: 1–20mm
Wavelength: 1064nm

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

50 W fiber laser at 1064 nm, power adjustable from 0 to 100 %
20 kg net weight; 2.5 kg handheld cleaning head
Sino-Galvo scan head: cleaning width 1–20 mm, length 1–100 mm
Air-cooled and runs on 220 V, 50/60 Hz
Works stand-alone, ready to use right after power-on

Overview

The MW-LS50 is a small, light laser rust removal machine for precise work. A 50 W fiber laser sends its beam through a Sino-Galvo scanner in the handheld head. The scanner traces a cleaning track from 1 to 20 mm wide and up to 100 mm long. It removes rust, coatings, paint and oxide from the surface without grinding or contact. The thermal effect is low and the substrate is not damaged.

Because the track is so precise, you can clean an exact spot and leave the area around it untouched. The machine works stand-alone: plug it in, switch it on and start cleaning. It uses no chemical cleaning liquid or other consumables, so there is no secondary pollution and running costs stay low.

Configuration

Laser: 50 W fiber laser at 1064 nm, adjustable from 0 to 100 %.
Scan head: Sino-Galvo galvanometer scanner in a 2.5 kg handheld head.
Cooling: air-cooled.
Power: 220 V ±10 %, 50/60 Hz.

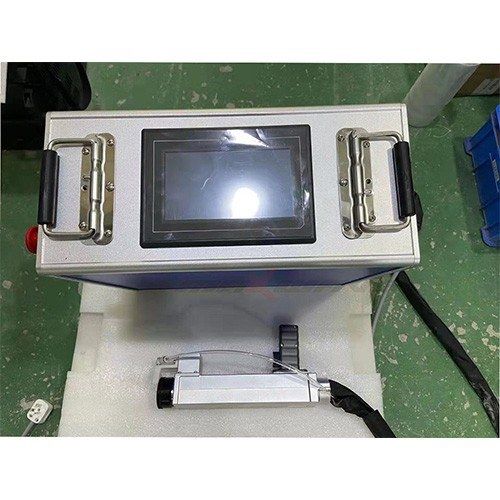

Housing: compact steel case with carry handles, a control panel and an emergency stop. Depending on the version, controls are front-panel switches or a touchscreen on top. Net weight is 20 kg.
Package: 720 × 520 × 345 mm, 26 kg gross.

Typical applications

Removing spot rust and oxide from tools, fittings and small parts
Removing coatings in exact, marked zones
Gentle cleaning of statues and stone surfaces
Maintenance work where blasting or chemicals are not wanted

Options and customization

Voltage and plugs to suit your country
Automated operation, with the head mounted on a fixture
Free operator training at our Wuhan factory, free software upgrades and engineer support

The MW-LS50 has a 2-year whole-machine warranty.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Pulsed vs continuous laser cleaning

Data

Specifications

Portable 50 W Laser Rust Removal Machine (MW-LS50) specifications
Model	MW-LS50
Laser power	50 W, adjustable 0–100 %
Wavelength	1064 nm
Scan head	Sino-Galvo
Cooling	Air cooling
Cleaning width	1–20 mm
Cleaning length	1–100 mm
Voltage	220 V ±10 %, 50/60 Hz
Head weight	2.5 ± 0.1 kg
Net weight	20 kg
Package size	720 × 520 × 345 mm
Gross weight	26 kg

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Carbon steel
Stainless steel
Aluminium
Stone

Applications

Spot rust removal
Oxide removal
Coating removal on small parts
Selective cleaning of marked areas
Statue and stone cleaning

FAQ

About this machine

What can a 50 W laser cleaner remove?

It removes light rust, oxide and thin coatings, and it is very precise on small areas. For heavy rust, thick paint or large surfaces, choose a 100 W or higher unit, or one of our high-power cleaners.

Why is the cleaning width only 1–20 mm?

A narrow scan concentrates the 50 W beam, which keeps cleaning effective at this power. It suits edges, spots, weld areas and marked zones. The cleaning length can be set from 1 to 100 mm.

Does it need a computer?

No. The machine works stand-alone. You switch it on and can start cleaning right away.

How is it shipped?

It ships in a 720 × 520 × 345 mm package with a gross weight of 26 kg. Net weight is 20 kg.

What support do I get?

We help you choose the right machine before purchase. After delivery we train your operators free of charge until they can run it well, and we provide free software upgrades and ongoing engineer support.
