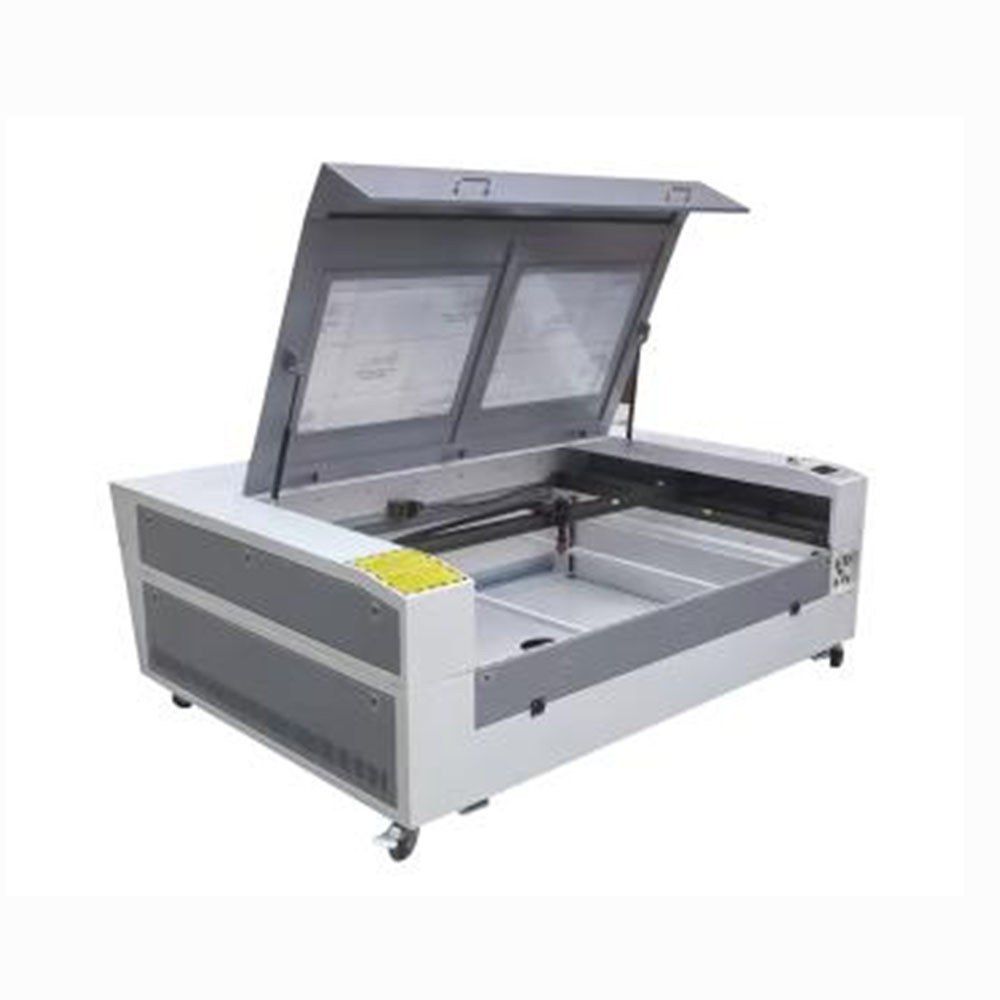

MW-CE CO2 laser engraving and cutting machine with the lid raised, showing the work bed, gantry, side control panel and front drawer

Flatbed CO2 engravers

CO2 Laser Engraving and Cutting Machine 1390 / 1610 (60–150 W)

Models · MW-CE1390 · MW-CE1610

A flatbed CO2 laser that engraves and cuts wood, acrylic, PVC, rubber, bamboo and other non-metals. It comes in two bed sizes, 1300 × 900 mm and 1600 × 1000 mm, with a 60–150 W glass tube. It suits sign makers, craft and decoration workshops, and model makers who need one machine for both engraving and cutting.

Working area: 1300 × 900 / 1600 × 1000mm
Laser power: 60–150W
Repositioning accuracy: < 0.01mm
Max. resolution: 2500dpi

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

Two bed sizes: 1300 × 900 mm (1390) and 1600 × 1000 mm (1610)
60 to 150 W CO2 glass laser tube, water-cooled with a protection system
Ruida DSP controller that runs jobs offline from a USB flash drive
Optional motorized up-down table for thick workpieces and rotary attachment for cylinders
Imports PLT, DXF, AI and BMP files from CorelDRAW and AutoCAD

Overview

This flatbed CO2 laser does two jobs on one machine. It engraves detailed images and text, and it cuts parts out of sheet material. The CO2 beam is absorbed well by organic materials and most plastics. That makes it a good fit for wood, acrylic, PVC, rubber, bamboo and similar materials. Acrylic cuts come out with a clean edge, and engraving resolution reaches 2500 dpi.

Two bed sizes are available. The 1390 has a 1300 × 900 mm work area, and the 1610 has a 1600 × 1000 mm work area.

Configuration

Laser: sealed CO2 glass tube, 60 to 150 W. It is water-cooled with a protection system, and power is set from 1 to 100 % in software.
Motion: stepper-motor drive, with repositioning accuracy better than 0.01 mm.

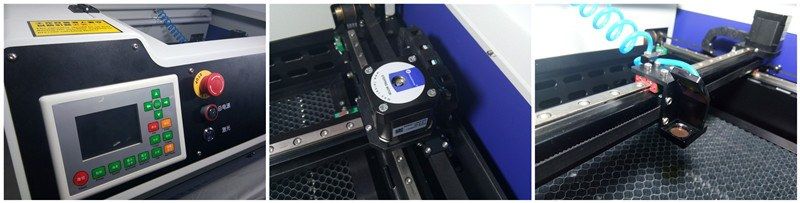

Control: Ruida DSP controller with a keypad and display on the machine. Jobs load over USB, so the machine runs offline. It also connects directly to a computer.
Software: LaserCut 5.3. It accepts PLT, DXF, AI, BMP and DST files directly and converts JPG, GIF, PNG and TIF. It works with CorelDRAW and AutoCAD, and with designs from Photoshop and ArtCut.
Supplied with: laser tube, lens and mirrors, water pump, air pump, exhaust fan, English manual and tool box. It ships in a plywood case.

Typical applications

Signs, letters and displays for advertising
Decoration, gifts, and arts and crafts
Architectural and scale models
Rubber plates and bamboo products
Parts for electrical appliances and the mould industry

Options and customization

Motorized up-down table for thick workpieces
Honeycomb or blade table
Rotary attachment with rollers or chuck, for engraving cylinders
Red-dot pointer and auto focus
220 V, 50 Hz or 110 V, 60 Hz power supply

The machine has a 2-year whole-machine warranty, and operator training at our Wuhan factory is free.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Buying a laser machine from China

Data

Specifications

CO2 Laser Engraving and Cutting Machine 1390 / 1610 (60–150 W) specifications
Model	MW-CE1390 / MW-CE1610
Working area	1300 × 900 mm / 1600 × 1000 mm
Laser type	CO2 glass laser tube
Laser power	60 / 80 / 100 / 130 / 150 W
Laser power control	1–100 %, set in software
Max. engraving speed	60,000–70,000 mm/min, by model
Max. cutting speed	40,000–45,000 mm/min, by model
Repositioning accuracy	< 0.01 mm
Min. character size	1 × 1 mm
Max. engraving resolution	2500 dpi
Cooling	Water cooling with protection system
Drive	Stepper motors
Controller	Ruida DSP, offline operation
Data transfer	USB flash drive or direct from computer
Software	LaserCut 5.3; works with CorelDRAW and AutoCAD
File formats	PLT, DXF, AI, BMP, DST (direct); JPG, GIF, PNG, TIF (converted)
Power supply	220 V ±10 %, 50 Hz or 110 V ±10 %, 60 Hz
Operating temperature	0–45 °C
Operating humidity	5–95 %
Gross weight	225 kg (1390)
Standard accessories	Laser tube, lens and mirrors, water pump, air pump, exhaust fan, DSP control system, LaserCut 5.3 software, English manual, tool box
Package	Plywood case

Speeds are maximum machine values; real cutting speed depends on material, thickness and tube power.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Wood
Acrylic (PMMA)
PVC and other plastics
Rubber sheet
Bamboo
Leather
Paper

Applications

Advertising signs and letters
Decoration
Arts and crafts
Architectural models
Mould industry
Electrical appliance parts

FAQ

About this machine

Should I choose the 1390 or the 1610?

Choose by the largest sheet you work with. The 1390 has a 1300 × 900 mm bed. The 1610 has a 1600 × 1000 mm bed, which takes larger acrylic and board sheets with less cutting-down.

Which tube power do I need?

Lower power, such as 60–80 W, is fine for engraving and cutting thin material. Higher power, such as 100–150 W, cuts thicker acrylic and wood faster. Tell us your materials and thicknesses, and we will test a sample and recommend a tube.

Can it cut metal?

No. This machine is built for wood, acrylic, plastics, rubber and other non-metals. For steel, stainless steel and aluminium sheet, see our fiber laser cutting machine.

Do I need a computer next to the machine?

You design the job on a computer, but the Ruida DSP controller can run it offline from a USB flash drive. The machine can also be connected directly to a computer.

What comes in the box?

The laser tube, lens and mirrors, water pump, air pump, exhaust fan, DSP control system, LaserCut 5.3 software, English manual and tool box. We recommend keeping a spare lens, three spare mirrors and a spare tube.
