1530 fiber laser cutting machine: open 1500 × 3000 mm cutting bed with gantry, operator console and separate laser source cabinet

Sheet fiber laser cutters

Fiber Laser Cutting Machine 1530 (1500 × 3000 mm, 500–2200 W)

An open-bed fiber laser cutter for full-size 1500 × 3000 mm metal sheet, with laser sources from 500 to 2200 W. It suits sheet-metal shops and manufacturers that cut carbon steel, stainless steel and aluminium parts straight from DXF files. Accuracy is ±0.02 mm, and rapid moves run at up to 80 m/min.

Working area: 1500 × 3000mm
Laser power: 500–2200W
Positioning accuracy: ±0.02mm
Max. cutting speed: 40m/min

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

1500 × 3000 mm working area for full-size sheet; custom bed sizes on request
Welded carbon-steel bed, heat-treated at 650 °C, then gantry-milled for flatness
Integral cast-aluminium beam: light, stiff and corrosion resistant
Rack-and-pinion drive with Fuji servo motors, 1 g acceleration
BOCHU controller with CypCut software and automatic focusing

Overview

The 1530 is our gantry fiber laser cutting machine for metal sheet up to 1500 × 3000 mm. A fiber laser source of 500 to 2200 W cuts parts straight from your drawing. There are no punches, dies or tool changes, and the parts come off the bed ready for bending or welding.

The machine is built for stable, repeatable accuracy. Positioning accuracy is ±0.02 mm and repeatability is ±0.01 mm on X and Y. Rapid moves run at up to 80 m/min with 1 g acceleration, which cuts the idle time between parts.

Configuration

Bed: welded high-grade carbon-steel structure. It is heat-treated at 650 °C to relieve stress, then finished by five-axis and large gantry milling for flatness and rigidity. The table takes up to 500 kg/m².
Beam: one-piece cast aluminium, light and stiff, and resistant to corrosion and oxidation.
Drive: rack and pinion on X and Y, driven by Fuji servo motors.
Laser source: Raycus, IPG or nLight fiber laser, 500 / 750 / 1000 / 1500 / 2200 W.
Cutting head: automatic focusing, so no manual focus adjustment is needed.
Control: BOCHU controller with CypCut software. It imports DXF and AI files and has an easy operator interface.
Utilities: 380 V supply. Machine weight is about 5.5 t.

Typical applications

Cutting carbon steel, stainless steel and aluminium sheet in job shops
Making enclosure, cabinet and bracket blanks for bending and welding
Cutting machine parts and flat components
Cutting signs, lettering and decorative panels

Options and customization

Laser power of 500, 750, 1000, 1500 or 2200 W
Choice of Raycus, IPG or nLight source
Custom working area on request
Voltage and electrical setup to suit your factory

The machine has a 2-year whole-machine warranty. You are welcome to inspect it at our Wuhan factory before shipment.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Buying a laser machine from China

Data

Specifications

Fiber Laser Cutting Machine 1530 (1500 × 3000 mm, 500–2200 W) specifications
Laser type	Fiber laser
Laser source	Raycus, IPG or nLight (to order)
Laser power	500 / 750 / 1000 / 1500 / 2200 W
Working area	1500 × 3000 mm
Max. cutting speed	40 m/min
Rapid traverse speed	80 m/min
Max. acceleration (X/Y)	1 g
Positioning accuracy (X/Y)	±0.02 mm
Repeat positioning accuracy (X/Y)	±0.01 mm
Max. table load	500 kg/m²
Drive	Rack and pinion, Fuji servo motors
Beam	Integral cast aluminium
Focusing	Automatic
Controller	BOCHU (Shanghai)
Software	CypCut
File formats	DXF, AI
Voltage	380 V
Machine weight	5.5 t

Cutting speed and maximum thickness depend on laser power, material and gas. Send us your material list and we confirm the right power option.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

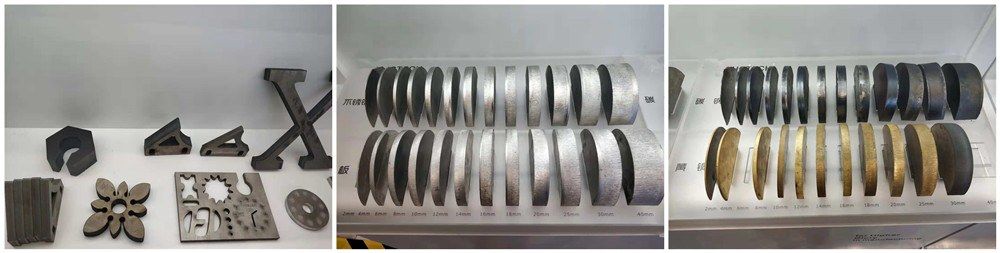

Materials

Carbon steel
Stainless steel
Aluminium
Brass

Applications

Sheet-metal fabrication
Enclosures and cabinets
Brackets and machine parts
Metal signs and decorative panels

FAQ

About this machine

How thick can it cut?

Maximum thickness depends on laser power, material and assist gas. A 2200 W source cuts much thicker plate than a 500 W source. Send us your materials and thicknesses, and we will recommend a power option and confirm the cutting speed.

Which laser source brands can I choose?

You can choose a Raycus, IPG or nLight fiber laser source, in 500, 750, 1000, 1500 or 2200 W.

What files and software does it use?

The machine runs a BOCHU controller with CypCut software. CypCut imports DXF and AI files from your CAD or design program.

What do I need on site?

You need a 380 V supply and floor space for a 1500 × 3000 mm bed plus the laser source cabinet. The machine weighs about 5.5 t, so plan the unloading and floor loading. Ask us for the floor plan dimensions.

Can I inspect the machine before shipment?

Yes. You are welcome to inspect your machine at our factory in Wuhan, and we train your operators there free of charge.
