Portable Handheld Fiber Laser Marking Machine 20–50 W

Overview

Some parts are too big, too heavy or already installed, so they cannot go under a fixed marking head. This machine brings the laser to the part. The galvo scan head has its own grip handle and a support cage, and the fiber laser source sits in a compact cabinet with carry handles.

The head steers a 1064 nm fiber laser beam at up to 8000 mm/s across a 110 × 110 mm field. That is enough for serial numbers, logos, dates and codes on large castings, pipes and machine frames. For small parts, the same machine works as a bench marker: leave the head on its bracket and put the part on the lifting table.

Configuration

• Laser source: air-cooled fiber laser, 20, 30 or 50 W, in a cabinet with carry handles, power and emergency-stop buttons.
• Scan head: handheld galvo head with grip handle and support cage, fitted with a quartz field lens. Quartz handles high laser power with less thermal focus shift than an ordinary lens.
• Work table: lifting table on the side of the cabinet for bench work; the table can be customised.
• Control: EZCAD or MarkingMate marking software.

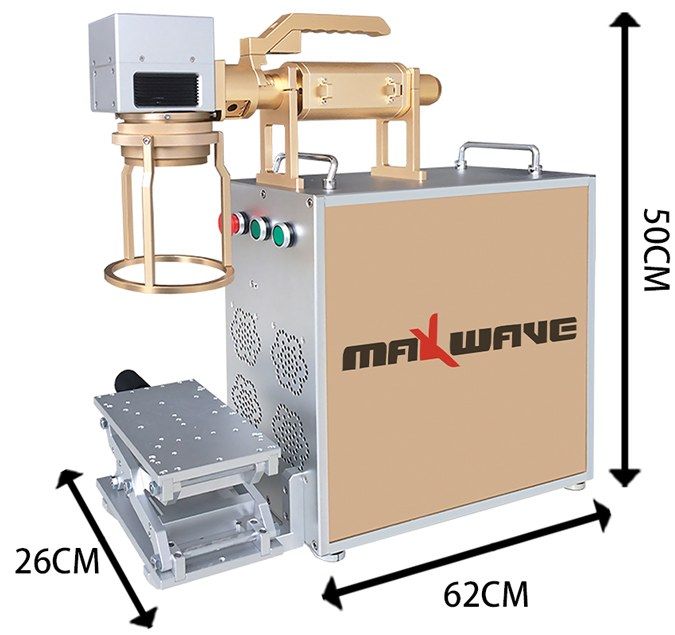

• Size and weight: 62 × 26 × 50 cm and 40 kg. It ships in a 72 × 36 × 60 cm crate, 55 kg packed.

Typical applications

The machine marks stainless and carbon steel, aluminium, bronze, gold and silver. Use it for:

• identification marks on large castings and welded fabrications
• serial numbers on pipes, profiles and installed equipment
• nameplates, tools and hardware
• small parts on the lifting table, in the same way as a desktop marker

Options and customization

• Power: 20, 30 or 50 W. A 100 W version is also listed in the series data; ask us if you need it.
• Marking area: 110 × 110 mm as standard; other fields on request.
• Appearance and work table: both can be customised.
• Supply: 220 V / 50 Hz as standard; other voltages and plugs on request.

Maxwave covers the machine with a 2-year whole-machine warranty and offers free training at the factory.
