MW-SM2 mini 2 W laser marker on its desktop stand, front and side views

Handheld and portable markers

Mini 2 W Handheld and Desktop Laser Marker

Models · MW-SM2

A 3.9 kg laser marker with a built-in 5-inch touch screen that works handheld or on its desktop stand. A 2 W end-pumped pulsed laser at 1064 nm marks text, logos, QR codes and serial numbers on metal, acrylic, plastic and leather over a 70 × 70 mm field. It suits shops, makers and personalisation services that do not need a full industrial marker.

Laser power: 2W
Wavelength: 1064nm
Marking area: 70 × 70mm
Weight: 3.9kg

Ask on WhatsAppor call +44 7762 362563

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

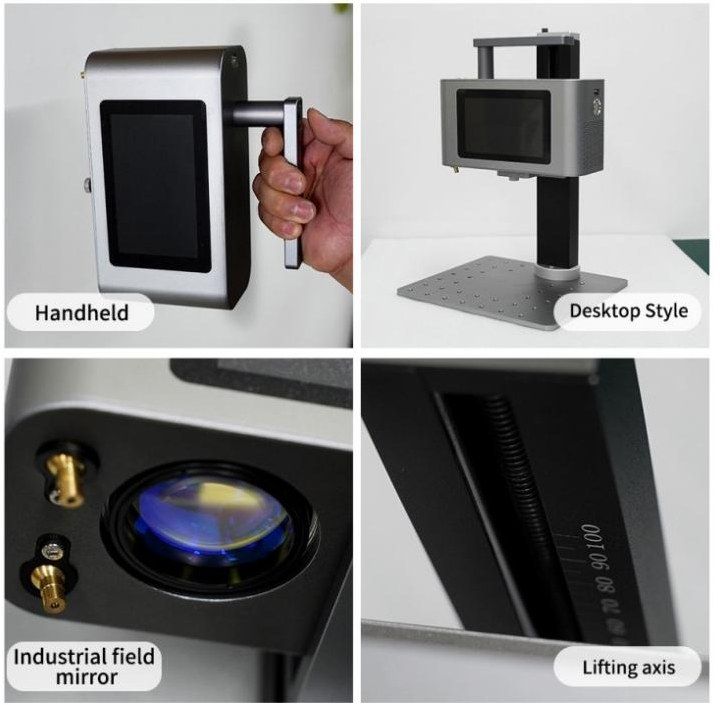

Use it handheld or on the desktop stand with a graduated lifting axis
Built-in 5-inch capacitive touch screen running embedded Linux
Dual red-light pointers for quick focusing
Powered by a DC 12 V / 5 A adapter; air-cooled

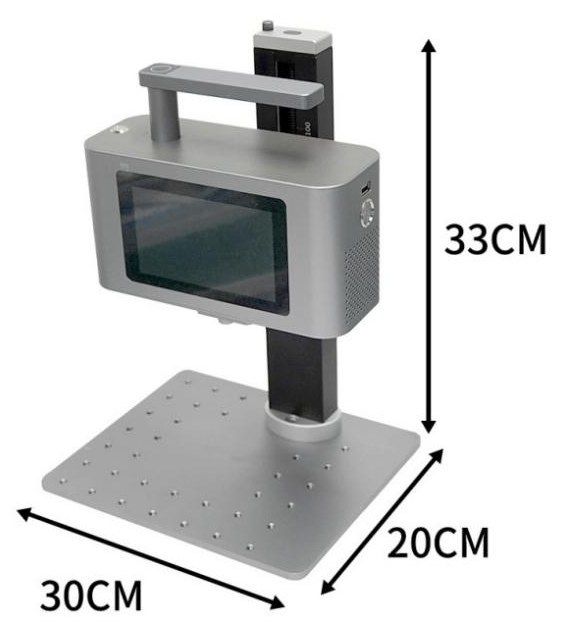

3.9 kg, 300 × 200 × 330 mm on its stand

Overview

The MW-SM2 is the smallest marker in the Maxwave range. The laser, controller and a 5-inch touch screen sit in one compact housing with a carry handle. Lift it off the stand to mark an item where it is, or leave it on the desktop stand and adjust the height on the graduated lifting axis.

The source is a 2 W end-pumped pulsed laser at 1064 nm. Its small spot gives a high energy density, which is enough for clean surface marks on metal, acrylic, plastic and leather. The marking field is 70 × 70 mm, sized for tags, tumblers, small packaging and leather goods.

Configuration

Laser: 2 W end-pumped pulsed laser, 1064 nm.
Optics: industrial field lens with two red pointer beams for focusing.
Controls: 5-inch full-colour capacitive touch screen on an embedded Linux system. Fonts can be imported, and the machine marks text, numbers, symbols, QR codes, barcodes, dates and serial numbers.
Stand: perforated base plate and column with a graduated lifting axis.
Power and cooling: DC 12 V / 5 A adapter; air-cooled.
Size: 300 × 200 × 330 mm and 3.9 kg on its stand. It ships in a 46 × 31 × 18.5 cm carton, 8 kg packed.

Typical applications

Names and dates on pet tags and name tags
Logos and monograms on tumblers and drinkware
Patterns and initials on leather goods
Batch codes and short runs of product packaging
Serial numbers and QR codes on small parts

Options and customization

The MW-SM2 comes in one power level, 2 W. If you need deeper marks or faster cycle times, look at our 20–100 W fiber markers. For mixed metal and wood work, the dual-wavelength portable marker adds a 10 W blue laser in a similar compact housing.

Maxwave covers the machine with a 2-year whole-machine warranty.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Read before you buy

How much does a fiber laser marking machine cost?MOPA vs standard fiber laser: which marker do you need?

Data

Specifications

Mini 2 W Handheld and Desktop Laser Marker specifications
Model	MW-SM2
Laser type	End-pumped pulsed laser
Laser power	2 W
Wavelength	1064 nm
Marking area	70 × 70 mm
User interface	5-inch full-colour capacitive touch screen
Operating system	Embedded Linux
Fonts	Font file import supported
Marking content	Text, numbers, symbols, QR codes, barcodes, dates, serial numbers
Focusing	Dual red-light pointers
Cooling	Air
Power supply	DC 12 V / 5 A adapter
Size	300 × 200 × 330 mm
Net weight	3.9 kg
Packing size	460 × 310 × 185 mm
Packed weight	8 kg
Operating temperature	10–40 °C
Humidity	≤ 95 % RH, non-condensing

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Metals
Acrylic
Plastics
Leather

Applications

Pet tags and name tags
Tumblers and drinkware
Leather goods
Product packaging
Small-batch serial numbers and QR codes

FAQ

About this machine

Do I need a computer to run it?

The machine has its own 5-inch touch screen and embedded Linux system, so text, dates and codes can be set up on the machine, and font files can be imported. Ask us how logos and artwork are loaded on your version.

Is 2 W enough for my work?

For surface marks on metal, acrylic, plastic and leather, such as names, logos, dates and QR codes, yes. It is not meant for deep engraving or high-volume production lines; for those, look at a 20 W or larger fiber marker.

What does it need to run?

A DC 12 V, 5 A adapter supplies power and the laser is air-cooled. The working range is 10–40 °C and up to 95 % relative humidity without condensation.

How is it shipped?

In a 46 × 31 × 18.5 cm carton with a packed weight of 8 kg.
