Integrated Fiber Laser Marking Machine 30–50 W
Models · MW-F (30–50)
A compact all-in-one fiber laser marker: the source, controller and galvo head share one aluminium body with a 28 × 33 cm footprint. It connects to a Windows PC running EzCad2 and marks metals and plastics at up to 8000 mm/s. It suits workshops and benches where floor space is short and the machine may need to move.
- Laser power
- 30–50W
- Marking speed
- ≤ 8000mm/s
- Marking depth
- 0.01–2mm
- Footprint
- 28 × 33cm
- 2-year whole-machine warranty
- Free operator training
- Built to order: voltage, plug, labels
- Source, controller and galvo head built into one aluminium body
- Scan speed up to 8000 mm/s with 0.001 mm repeatability
- Red-light preview and two-point red pointer focusing with electric lift
- Air-cooled by five fans; runs on AC 220 V / 50 Hz

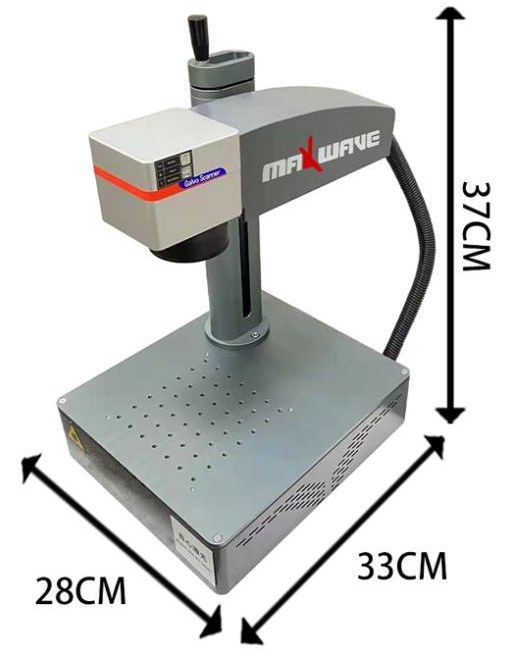

- Machine 28 × 33 × 37 cm; ships in a 30 kg crate
Overview
The integrated marker packs a full fiber laser marking system into one small aluminium unit. The fiber source and controller sit in the base, and the galvo scanner hangs from a single column above a perforated work plate. With a 28 × 33 cm footprint it fits on a workbench and is easy to move between work areas.
The galvo head steers the 1064 nm beam at up to 8000 mm/s. That is fast enough for serial numbers, barcodes and QR codes on parts in volume. With more passes it also engraves, to a listed depth of up to 2 mm depending on the material.
Configuration
- Laser source: fiber laser, 30 or 50 W, at 1064 nm. Pulse frequency is 20–80 kHz as standard; a 1–600 kHz range is listed as an option.
- Scan head: high-speed galvo scanner with field lens.
- Focusing: two red pointer beams mark the focal point, and an electric lift sets the head height. A red-light preview shows where the mark will land.
- Cooling: five fans and an aluminium body. No chiller is needed.
- Control: EzCad2 software and a JCZ LMCV4-FIBER-M control board, connected to your Windows PC by USB.
- In the box: the accessories listed for this model include a foot pedal, laser safety goggles, aluminium test cards, a USB cable and a USB drive with the software and training videos. Confirm the packing list with your quote.
Typical applications
The machine marks all common metals and many plastics. Typical uses are part numbers and traceability codes, barcodes and QR codes, nameplates and tags, tools and hardware, and small jewellery items.
Options and customization
- Power: 30 or 50 W. Choose 50 W for deeper engraving or shorter cycle times.
- Accessories: a jeweller-type rotary divider, auto focus and a vacuum unit are listed as options.
- Supply: AC 220 V / 50 Hz as standard; other voltages and plugs on request.
Maxwave covers the machine with a 2-year whole-machine warranty and offers free training at the factory.
Talk to an engineer
Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.
Send your job detailsNeed a different setup?
This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.
Ask for the restRelated guide
Fiber, UV or CO2 laser markingData
Specifications
| Model | MW-F (30–50) |
|---|---|
| Laser type | Fiber laser |
| Laser power | 30 / 50 W |
| Wavelength | 1064 nm |
| Pulse frequency | 20–80 kHz (1–600 kHz optional) |
| Marking speed | 1–8000 mm/s |
| Marking depth | 0.01–2 mm, depending on material |
| Repeatability | 0.001 mm |
| Minimum line width | 0.017 mm |
| Minimum character height | 0.2 mm |
| Preview | Red-light preview |
| Focusing | Two-point red pointer, electric lift |
| Cooling | Air, 5 fans, aluminium body |
| Control software | EzCad2 |
| Control board | JCZ LMCV4-FIBER-M |
| Operating system | Windows XP / 7 / 8 / 10 (32- or 64-bit) |
| File formats | PLT, DXF, DST, AI, SDT, BMP, JPG, GIF, TGA, PNG, TIF, CDR, DWG |
| Power supply | AC 220 V / 50 Hz |
| Machine size | 280 × 330 × 370 mm |
| Packing size | 380 × 430 × 450 mm |
| Packed weight | 30 kg |
Specifications vary by power option; confirm the configuration and packing list with us.
Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.
Fit
Materials & uses
Materials
- Steel
- Stainless steel
- Aluminium
- Brass
- Plastics
Applications
- Serial numbers and traceability codes
- Barcodes and QR codes
- Nameplates and tags
- Tools and hardware
- Jewellery
FAQ
About this machine
Do I need a separate computer?
Yes. The machine is controlled by EzCad2 on a Windows PC (XP, 7, 8 or 10) connected by USB. The software comes on a USB drive together with training videos.
How deep can it mark?
The listed range is 0.01–2 mm, depending on the material and power. Deep marks take several passes, and a 50 W source gets there faster than 30 W. If depth matters, send us a sample and we will test it.
How do I set the focus?
Two red pointer beams meet at the focal point, and the head height is set with an electric lift. A red-light preview then traces the marking area before the laser fires.
How large is it to ship?
The machine measures about 28 × 33 × 37 cm. It ships in a wooden crate of 38 × 43 × 45 cm with a total packed weight of 30 kg.
