Cabinet UV Laser Marking Machine 3–15 W

Overview

This is the production version of the Maxwave UV marker. A 355 nm UV source, a galvo scan head, the controls and a monitor are built into a floor-standing cabinet, and a separate smart water chiller keeps the source at a steady temperature. The range runs from 3 W up to 15 W.

UV light marks by breaking molecular bonds rather than by melting the surface, so very little heat reaches the part. That makes the machine well suited to fine marks on polymer packaging, such as bottles for cosmetics, medicine and jewellery, and on plastics and glass where a fiber laser would leave burn marks or discolouration.

Configuration

• Laser source: 355 nm UV laser at 3, 5, 10 or 15 W. The 3 and 5 W models run at 20–100 kHz; the 10 and 15 W models at 40–300 kHz.
• Scan head: galvo scanner on a lifting column, line speed up to 7000 mm/s.
• Cooling: smart water cooling through a separate chiller unit.

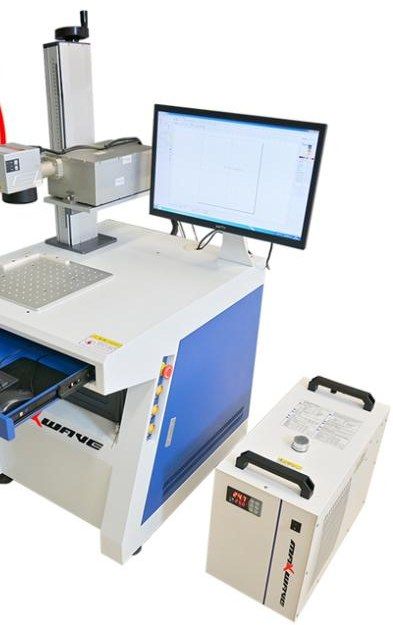

• Workstation: cabinet with monitor, control panel and pull-out keyboard tray.
• Supply: 220 V ±10 %, 50 Hz, 15 A.

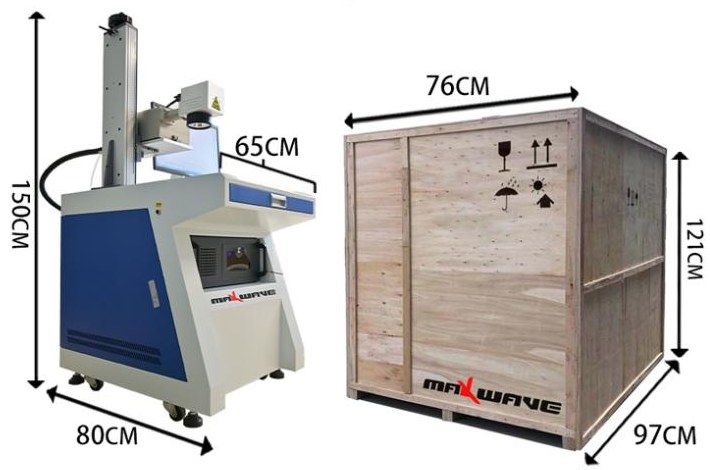

• Size: 80 × 65 × 150 cm; 135 kg packed for export.

Typical applications

• Text, logos and codes on cosmetics bottles and packaging
• Marks on pharmaceutical packaging
• Marks on jewellery packaging and other polymer containers
• Fine marks on glassware and clear plastic parts

Options and customization

• Power: 3, 5, 10 or 15 W. Higher power marks faster.
• Field: 100 × 100 mm on the 3 W model; 100 × 100, 150 × 150 or 200 × 200 mm on the 5–15 W models.
• Supply: voltage and plug to your country’s standard.

The machine carries Maxwave’s 2-year whole-machine warranty, with free operator training at our Wuhan factory.
