UV Laser Marking Machine 3–10 W (355 nm)

Overview

A UV laser works at 355 nm, a third of the wavelength of a fiber laser. At this wavelength the mark is made mainly by photochemical action: the laser energy breaks the bonds between molecules, and the material leaves the surface as small fragments. Very little heat spreads into the part. The focused spot is also very small, which is why UV is the usual choice for ultra-fine marks.

The result is a crisp mark on materials that a fiber laser would melt, burn or discolour: clear and coloured plastics, glass, crystal, silicon, flexible PCBs and coated surfaces. UV also marks most metals for fine surface work.

Configuration

• Laser source: 355 nm UV laser at 3, 5 or 10 W, repetition rate 20–100 kHz.
• Scan head: galvo scanner with a 110 × 110 mm field, line speed up to 7000 mm/s.
• Precision: minimum line width 0.012 mm, minimum character height 0.15 mm, repeat accuracy ±0.003 mm.
• Cooling: water-cooled source.
• Control: EZCAD software.

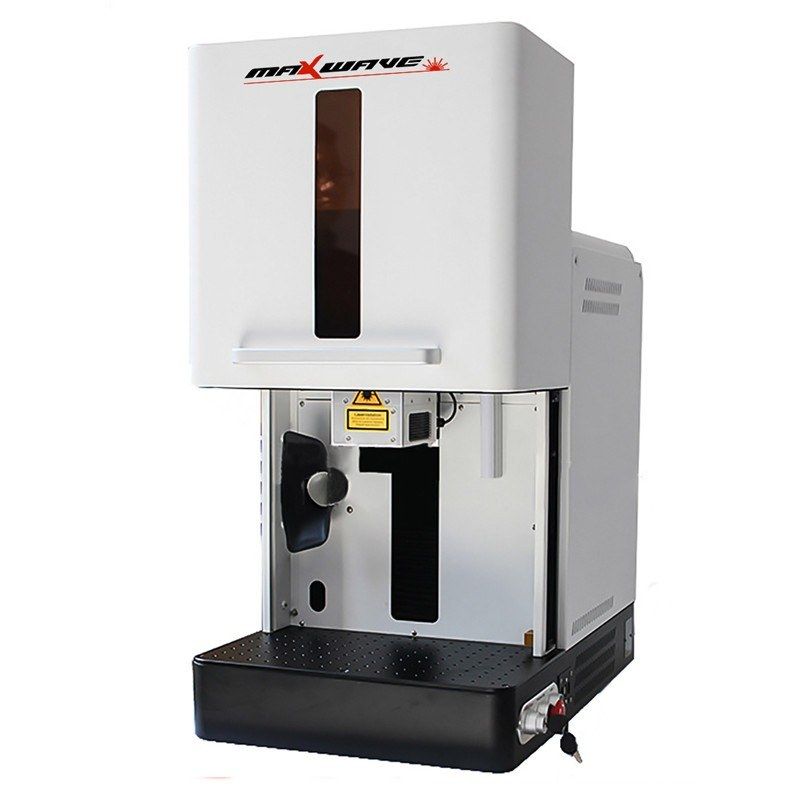

• Frame: the machines shown are enclosed versions with viewing windows.
• Supply: AC 220 V ±10 %, 50 Hz; total power 0.5–0.6 kW.

Typical applications

• Electronic components, chargers, cables and computer accessories
• Phone screens, LCD glass, covers, keypads and cases
• Flexible PCB marking and scribing
• Bottles and packaging for medicine, food, beverages and cosmetics
• Glassware, crystal and clock and watch faces
• Auto parts, auto glass, instruments and medical instruments

Options and customization

• Power: 3, 5 or 10 W. For a 15 W source and larger fields, see the cabinet UV marker.
• Frame: desktop or enclosed versions; ask which suits your workplace.
• Field: 110 × 110 mm as standard; a 200 × 200 mm field is also listed, so confirm lens options with us.
• Supply: voltage and plug to your country’s standard.

The machine carries Maxwave’s 2-year whole-machine warranty, with free operator training at our Wuhan factory.
