Jewelry laser welders

100J Gold Jewelry Laser Welder, 100 W Water-Cooled

A compact 100 W Nd:YAG welder for gold jewelry, watch and dental repair. It fits in a 510 × 295 × 395 mm, 28 kg cabinet with water cooling, a binocular microscope and a touch panel in several languages. A good fit where bench space is tight.

Laser power
100W
Pulse energy
45J
Spot size
0.1–3.0mm
Net weight
28kg
Get a quote Test my part on it
  • 2-year whole-machine warranty
  • Free operator training
  • Built to order: voltage, plug, labels
  • 100 W Nd:YAG pulsed laser at 1064 nm
  • Compact cabinet: 510 × 295 × 395 mm, 28 kg
  • Spot size 0.1–3.0 mm; pulse width 0.1–10 ms; 1–10 Hz
  • LCD touch panel in English, Spanish, Arabic and other languages
  • Laser filter protects the operator's eyes

Overview

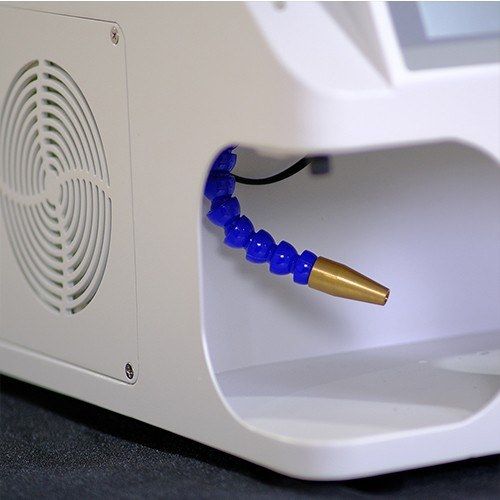

This is a small-footprint Nd:YAG pulse welder for repair work on gold jewelry and other fine metal parts. You hold the piece in the open chamber, aim under the microscope and fire. The spot is adjustable from 0.1 to 3.0 mm, so the same machine can tack a tiny prong or blend a wider repair. The heat-affected zone is small, parts distort little, and most joints need no solder.

The laser power supply is our own design. It delivers high single-pulse power with low overall consumption, about 2 kW at the socket.

Configuration

  • Laser: Nd:YAG, 1064 nm, 100 W, in a ceramic reflector cavity.
  • Pulse: 45 J per pulse, 0.1–10 ms, 1–10 Hz.
  • Cooling: water cooling designed around the YAG crystal, for stable beam quality and longer xenon-lamp life.
  • Viewing: binocular microscope.

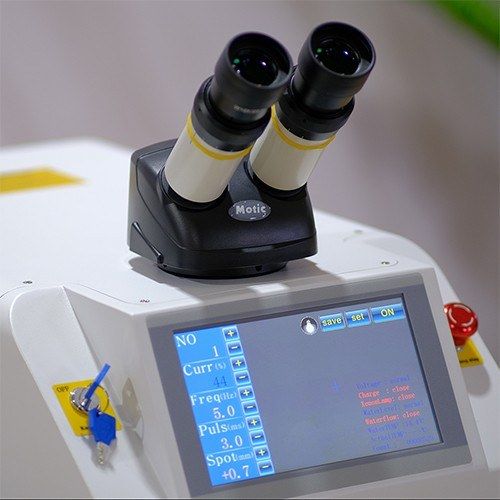

  • Control: LCD touch panel in several languages, including English, Spanish and Arabic.
  • Safety: laser filter protection for the operator’s eyes; key switch and emergency stop on the front.
  • Cabinet: 510 × 295 × 395 mm, 28 kg; AC 220 V, 50 Hz.

Typical applications

  • Gold jewelry repair: rings, chains and settings
  • Watch hairsprings and other small watch parts
  • Dental repairs
  • Small components in electronics, instruments and medical devices

Its small size makes it a practical first laser for a repair counter, or a second welder next to a larger 200 W machine.

Options and customization

For a combined CCD screen and microscope in the same cabinet size, see the MW-DW60 mini CCD welder. We can adapt the mains voltage and plug to your country. Every machine carries our 2-year whole-machine warranty, and operator training at our Wuhan factory is free.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

How to choose a jewelry laser welder

Data

Specifications

100J Gold Jewelry Laser Welder, 100 W Water-Cooled specifications
Laser typeNd:YAG, xenon-lamp pumped
Wavelength1064 nm
Laser power100 W
Pulse energy45 J
Pulse width0.1–10 ms
Pulse frequency1–10 Hz
Spot size0.1–3.0 mm
Laser cavityCeramic reflector cavity
Viewing systemBinocular microscope
OperationLCD touch panel, multi-language
Eye protectionLaser filter protection device
CoolingWater cooling
Power supplyAC 220 V, 50 Hz
Power consumption2 kW
Machine size510 × 295 × 395 mm
Net weight28 kg

Sold as a 100J model, but the spec table gives 45 J per pulse; confirm the pulse energy for your order.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

  • Gold
  • Jewelry alloys
  • Dental alloys

Applications

  • Jewelry repair
  • Watch hairsprings and small watch parts
  • Dental repair
  • Small parts for electronics and instruments

FAQ

About this machine

Is the pulse energy 100 J or 45 J?

This machine has been sold under a 100J name, but the specification table for this 100 W model lists 45 J per pulse. Treat 45 J as the working figure and ask us to confirm before you order.

How much bench space does it need?

The cabinet is 510 × 295 × 395 mm and weighs 28 kg, so it fits on a normal jeweler's bench. Leave room around the cooling vents.

Can staff use it in their own language?

Yes. The LCD touch interface supports several languages, including English, Spanish and Arabic.

Do I need filler material?

Many joints need none: the pulse fuses the parts directly with an even spot and little distortion. For larger holes you can add fine wire.
