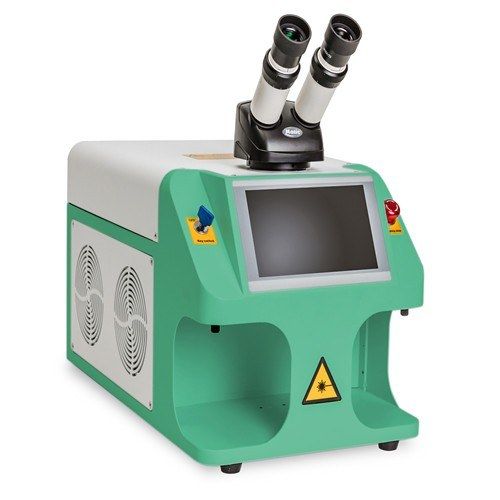

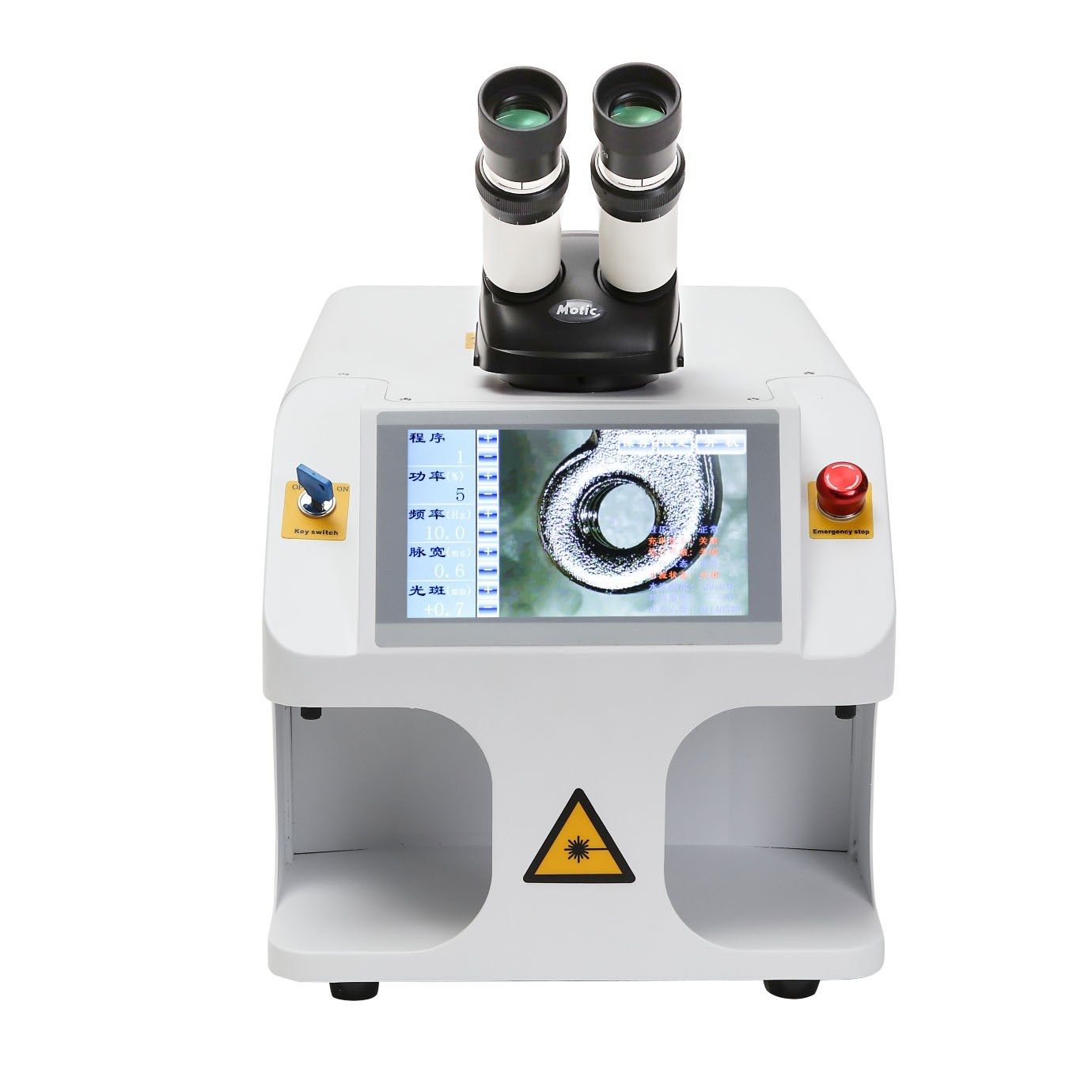

MW-DW60 mini jewelry laser welder with binocular microscope, touch screen and lit work chamber

Jewelry laser welders

Mini CCD Jewelry Laser Welder 60 W (MW-DW60)

Models · MW-DW60

The MW-DW60 is an entry-level Nd:YAG jewelry welder in a 28 kg desktop cabinet. A CCD screen and a microscope work together, so you can watch the whole weld. It delivers 40–60 J pulses with a 0.1–2.0 mm beam, suited to small repairs on rings, chains and settings.

Average power
60W
Pulse energy
40–60J
Beam diameter
0.1–2.0mm
Weight
28kg
Get a quote Test my part on it
  • 2-year whole-machine warranty
  • Free operator training
  • Built to order: voltage, plug, labels
  • 60 W average / 100 W maximum Nd:YAG laser at 1064 nm
  • 40–60 J single pulse energy; 0.1–10 ms; 1–10 Hz
  • Combined CCD screen and microscope to watch the whole weld
  • Beam diameter 0.1–2.0 mm with ±3 mm laser adjustment range
  • Compact 510 × 295 × 395 mm cabinet, 28 kg

Overview

The MW-DW60 is a small Nd:YAG pulse welder for jewelry shops that want laser repair without giving up much bench space. It averages 60 W (100 W maximum) and fires single pulses of 40–60 J. The beam can be set from 0.1 to 2.0 mm, which suits tacking, pinpoint fills and short seams on precious-metal parts.

Viewing combines a CCD screen with a microscope. You aim through the eyepieces and can follow the whole weld on screen, which helps when you need to check a joint or show it to a customer.

It is a sensible first laser welder for a repair counter. It takes over jobs where torch heat would risk stones or nearby solder joints.

Configuration

  • Laser: Nd:YAG, 1064 nm, 60 W average, 100 W maximum.
  • Pulse: 40–60 J, 0.1–10 ms, 1–10 Hz.
  • Beam: 0.1–2.0 mm, with a ±3 mm laser adjustment range.
  • Observation: CCD screen and microscope, combined.
  • Power: 220 V, 50 Hz.
  • Cabinet: 510 × 295 × 395 mm, 28 kg.

Energy, pulse width, frequency and spot diameter are adjustable for different joints, and the machine is specified for 24-hour continuous operation.

Typical applications

  • Ring and band repair
  • Prong and setting repair
  • Chain links and jump rings
  • Pendants and findings
  • Small dental parts

Options and customization

The MW-DW60 is a single-power model. For a 100 W machine in the same cabinet size, see our 100J gold jewelry welder. We can set the mains voltage and plug for your country. Every machine carries our 2-year whole-machine warranty, and operator training at our Wuhan factory is free.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

How to choose a jewelry laser welder

Data

Specifications

Mini CCD Jewelry Laser Welder 60 W (MW-DW60) specifications
ModelMW-DW60
Laser typeNd:YAG
Wavelength1064 nm
Average power60 W
Maximum power100 W
Single pulse energy40–60 J
Pulse width0.1–10 ms
Pulse frequency1–10 Hz
Laser adjustment range±3 mm
Beam diameter0.1–2.0 mm
ObservationCCD screen + microscope (combined)
Power supply220 V, 50 Hz
Machine size510 × 295 × 395 mm
Machine weight28 kg

Earlier listings called this a 100J model; the spec table gives 40–60 J per pulse. Confirm the figure for your order.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

  • Gold
  • Silver
  • Dental alloys

Applications

  • Ring and band repair
  • Prong and setting repair
  • Chain links and jump rings
  • Pendants and findings
  • Small dental parts

FAQ

About this machine

Why choose a CCD model?

The CCD screen shows the weld area magnified, alongside the microscope. You can watch the whole weld, check the result without moving the piece, and share the view with a customer or trainee.

Is 60 W enough for jewelry repair?

It is aimed at small repairs on rings, chains, settings and findings, with 40–60 J pulses and a 0.1–2.0 mm beam. For thicker sections or longer seams, look at our 100–200 W desktop welders.

How big and heavy is it?

510 × 295 × 395 mm and 28 kg, small enough for a shop counter or a crowded bench.

What power supply does it need?

220 V, 50 Hz single phase. We can adapt voltage and plug for your country.
