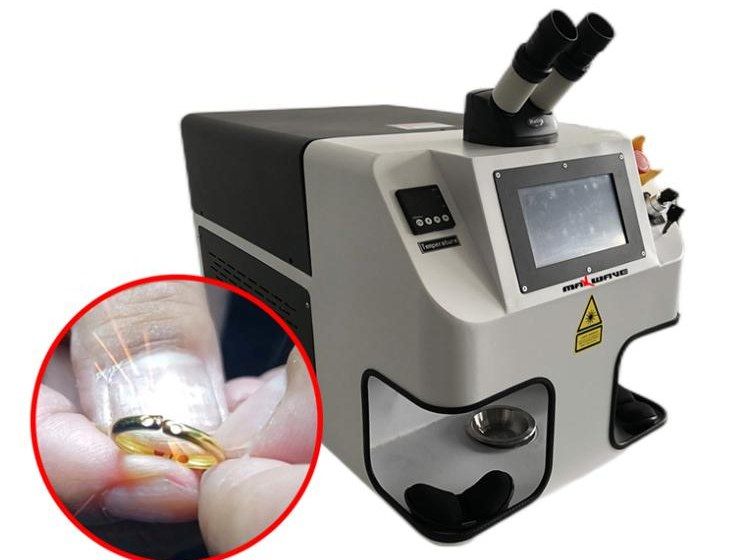

Front view of the MW-K100-200 jewelry laser welder with microscope, touch screen, temperature display and two hand ports with arm rests

Jewelry laser welders

Permanent Jewelry Laser Welder 150 W with CCD (MW-K100-200)

Models · MW-K100-200

A 150 W Nd:YAG desktop spot welder that combines an 8× CCD camera with a 10× coaxial microscope for exact positioning. It fires 40 J pulses at up to 50 Hz through a 0.2–2 mm spot and works with 0.1–0.5 mm filler wire. For jewelers who need more power than a mini welder in a desktop format.

Laser power: 150W
Pulse energy: 40J
Spot diameter: 0.2–2mm
Positioning: CCD 8× + microscope 10×

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

150 W Nd:YAG laser at 1064 nm, 40 J single pulse energy
CCD camera (8×) and coaxial microscope (10×) for positioning
Pulse width up to 15 ms, frequency up to 50 Hz, spot 0.2–2 mm
Works with 0.1–0.5 mm filler wire
7-inch touch screen in English or Chinese; built-in water cooling

Overview

The MW-K100-200 is a desktop Nd:YAG spot welder rated at 150 W. Each pulse heats the surface of the joint; the heat conducts inward and forms a small weld pool. You control its size with pulse width, energy, peak power and repetition rate. With 40 J per pulse, up to 50 Hz and a spot from 0.2 to 2 mm, it covers fine tack welds as well as heavier repairs with filler wire.

Positioning uses two systems together: a 10× coaxial microscope and an 8× CCD camera shown on the 7-inch touch screen. You see exactly where the pulse will land and can check the result on screen.

Configuration

Laser: Nd:YAG, 1064 nm, 150 W, 40 J per pulse.
Pulse: up to 15 ms width and up to 50 Hz.
Spot and wire: 0.2–2 mm spot; filler wire 0.1–0.5 mm.
Positioning: CCD camera (8×) and coaxial microscope (10×).
Control: 7-inch LED touch screen with an English or Chinese interface.
Cooling: water cooling built into the cabinet, with a temperature display on the front panel.
Work area: two hand ports with arm rests at the front.
Power: AC 220 V ±5 %, single phase, 3 kW.
Size and weight: 726 × 430 × 480 mm, 65 kg.

Typical applications

Gold and silver jewelry repair
Filling holes and porosity in castings
Rebuilding prongs with filler wire
Chain work, including permanent jewelry

The machine works at 0–35 °C and 5–85 % humidity, which covers most shop environments.

Options and customization

We can adapt the mains plug and voltage to your country. Every machine carries our 2-year whole-machine warranty, and operator training at our Wuhan factory is free.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

How to choose a jewelry laser welder

Data

Specifications

Permanent Jewelry Laser Welder 150 W with CCD (MW-K100-200) specifications
Model	MW-K100-200
Machine type	Desktop laser spot welder
Laser	Nd:YAG, 1064 nm
Laser power	150 W
Single pulse energy	40 J
Pulse width	≤ 15 ms
Pulse frequency	≤ 50 Hz
Spot diameter	0.2–2 mm
Filler wire diameter	0.1–0.5 mm
Positioning system	CCD camera (8×) + coaxial microscope (10×)
Operation	7-inch LED touch screen, English / Chinese
Cooling	Built-in water cooling
Power supply	AC 220 V ±5 %, single phase
Power consumption	3 kW
Machine size	726 × 430 × 480 mm
Net weight	65 kg
Working environment	0–35 °C, 5–85 % humidity
Packing	875 × 530 × 540 mm wooden crate, 68 kg

The dimension drawing shows a height of about 570 mm including the microscope; allow for this above your bench.
