Compact white jewelry laser welder with binocular microscope, touch screen and side viewing port

Jewelry laser welders

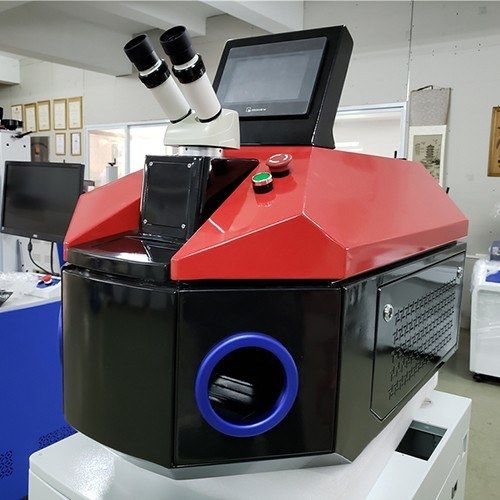

Portable Jewelry Laser Welder 200 W (Nd:YAG)

A compact 200 W Nd:YAG spot welder for jewelers, optical shops and dental labs that need precise joints without solder. It fires pulses of up to 100 J through a 0.1–2 mm spot, aimed through a 10× microscope. The cabinet measures 850 × 500 × 360 mm and has the chiller built in.

Laser power: 200W
Pulse energy: up to 100J
Spot size: 0.1–2mm
Frequency: 1–20Hz

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

200 W Nd:YAG laser pumped by a pulsed xenon lamp, 1064 nm
Up to 100 J per pulse; 0.2–15 ms pulse width; 1–20 Hz
0.1–2 mm spot for fine joints on jewelry, frames and dental work
Maxwave LS-W200 pulse power supply, made in-house
Compact 850 × 500 × 360 mm cabinet with integrated chiller

Overview

This welder uses a lamp-pumped Nd:YAG laser to fuse small metal parts with short, high-energy pulses. You aim through a 10× microscope and fire single pulses or a fast series at up to 20 Hz. The beam focuses to a spot between 0.1 and 2 mm, so each weld is small and neat and the heat stays close to the joint.

It suits benches that handle several kinds of fine work: gold and silver jewelry, eyeglass frames, dental frameworks and small mould details. Most joints need no solder, and the finished welds need little cleanup.

Configuration

Laser: Ø7 mm Nd:YAG crystal in a ceramic reflector cavity, pumped by a pulsed xenon lamp. 1064 nm, 200 W.
Pulse: up to 100 J, 0.2–15 ms, 1–20 Hz.
Power supply: Maxwave LS-W200 pulse power supply.
Cooling: chiller integrated in the cabinet, with over-temperature alarm and flow protection.
Control: single-chip (PIC) controller with simple parameter settings.
Viewing: 10× microscope.
Size: 850 × 500 × 360 mm; maximum input power 7 kW.

Typical applications

Repairing and assembling gold and silver jewelry
Eyeglass frames
Dental frameworks
Small repairs on moulds
Joining parts in bronze, aluminium, steel and titanium

Options and customization

The machine is built around 200 W average power. For a larger cabinet with the same LS-W200 power supply, see our 100 / 200 W desktop jewelry welder. We can configure the mains voltage and plug for your country. Every machine carries our 2-year whole-machine warranty, and operator training at our Wuhan factory is free.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

How to choose a jewelry laser welder

Data

Specifications

Portable Jewelry Laser Welder 200 W (Nd:YAG) specifications
Laser medium	Nd:YAG
Pump source	Pulsed xenon lamp
Wavelength	1064 nm
Output power	200 W
Max. single pulse energy	Up to 100 J
Pulse width	0.2–15 ms, adjustable
Pulse frequency	1–20 Hz, adjustable
Spot size	0.1–2 mm
Max. input power	7 kW
Laser cavity	Ø7 mm YAG crystal, ceramic reflector cavity
Laser power supply	LS-W200 pulse power supply (Maxwave)
Cooling	Integrated chiller with over-temperature alarm and flow protection
Control system	Single-chip (PIC) controller
Viewing system	10× microscope
Machine size	850 × 500 × 360 mm

Machine weight is not published; confirm it with us before planning transport.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Gold
Silver
Bronze
Aluminium
Steel
Titanium

Applications

Jewelry repair
Eyeglass frames
Dental work
Small mould repair

FAQ

About this machine

What does portable mean for this welder?

It is a compact desktop unit, 850 × 500 × 360 mm, with the chiller built in, so it fits on a standard bench and can be moved between rooms. It runs on mains power, and its maximum input is 7 kW, so check your circuit before installation.

Which metals can it weld?

Gold, silver, bronze, aluminium, steel and titanium. That covers most jewelry, eyeglass-frame and dental alloys.

How hard is it to learn?

The control system is simple, and most operators pick up the basics in a short session. We also offer free training at our Wuhan factory.

Who makes the laser power supply?

We do. Maxwave started in 2009 by building laser power supplies, and this welder uses our own LS-W200 pulse supply, so the power supply and the machine are serviced by the same team.
