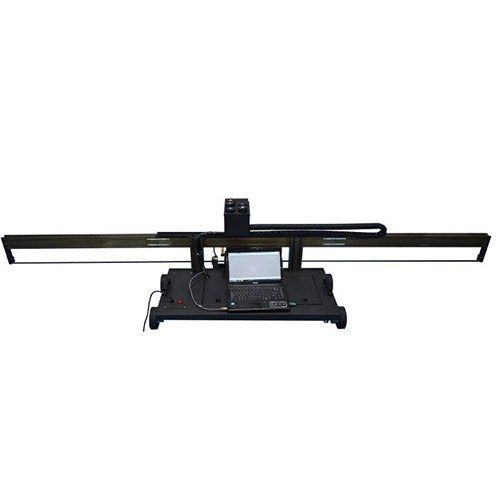

MW-GP200 floor printer: print carriage on a long beam and a wheeled base

Floor printers

Automatic 3D UV Floor Printer MW-GP200

Models · MW-GP200

The MW-GP200 is a dedicated floor printer: a print beam on a wheeled base that moves across the floor and prints decorative graphics, logos and 3D-effect images directly onto it. Two Epson heads print at up to 1440 × 2880 dpi, the aluminium frame folds in half for transport, and the machine draws only 20–250 W. It is built for floors; if you also need to print walls, choose the MW-GP400 or the Track-Type 2-in-1.

Max resolution: 1440 × 2880dpi
Print heads: 2 × Epson
Max power draw: 250W
Printing noise: < 72dBA

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

Prints images directly onto floors
Two Epson heads; resolution up to 1440 × 2880 dpi
Folding aluminium frame on a wheeled base
Dual ultrasonic sensors and a bidirectional surface sensor
Low power draw: 20 W idle, 250 W maximum

Overview

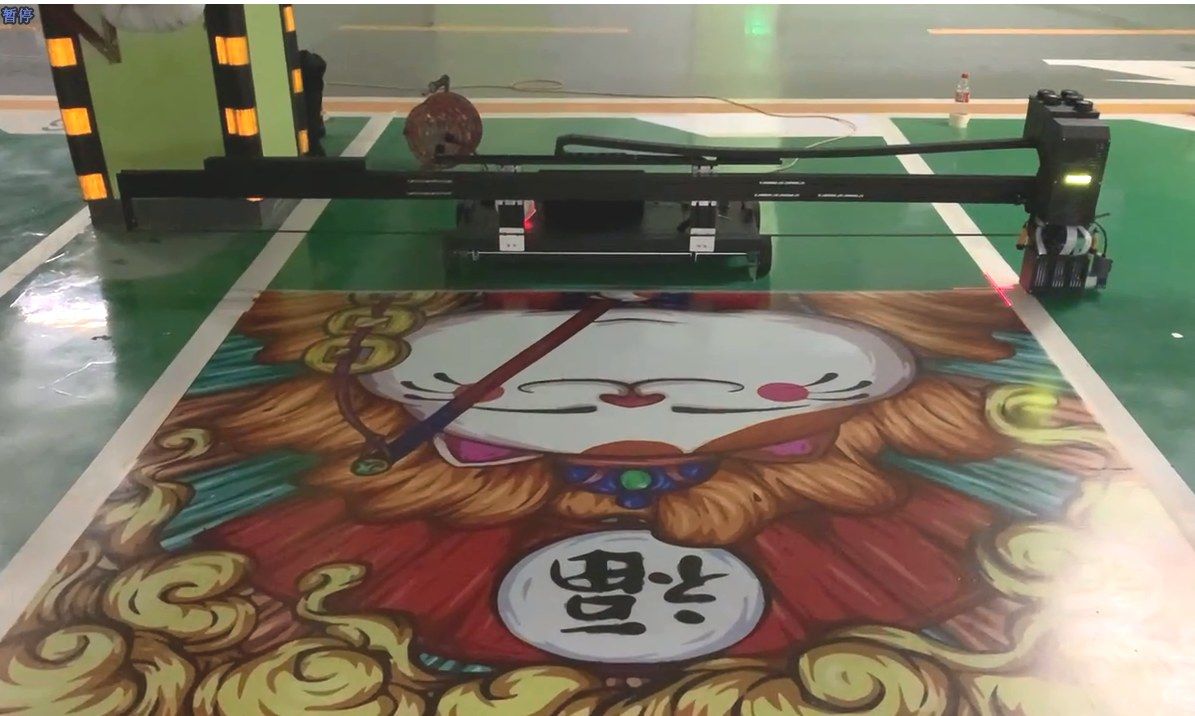

The MW-GP200 prints images straight onto floors. A print beam sits on a wheeled base; the print carriage runs along the beam and the machine moves across the floor to build up the image. Typical jobs are decorative floor art, 3D-effect images, logos and wayfinding in car parks, shops and showrooms.

Two Epson heads print at resolutions from 360 × 720 dpi up to 1440 × 2880 dpi. A bidirectional sensor and dual ultrasonic sensors keep the head at the right height over the surface.

Configuration

Heads: two Epson heads.
Ink supply: negative-pressure system with one supply line per colour and a 4-colour ink tank.
Frame: aluminium structure that folds in half; stable base that resists deformation.
Drive: imported servo motors; low-noise drag chain for the cables.
Control: wired operation; prints photos from a phone or camera and downloaded images.
Power: about 20 W idle and 250 W maximum.
Noise: under 20 dBA on standby, under 72 dBA while printing.

Typical applications

Decorative floors in car parks, garages, shops and showrooms; floor logos and wayfinding; 3D-effect floor art. Besides floor tiles and concrete, the printer handles wood boards, PVC, acrylic and metal plates.

Choose the MW-GP200 when floors are your main business. If you also print murals, the MW-GP400 prints both walls and floors with CMYK + white UV ink, and the Track-Type 2-in-1 does the same with Epson I1600 heads.

Options and customization

Ink version and colour set: confirm with us.
Voltage and plug to suit your country.

Every printer comes with our 2-year whole-machine warranty and free training at our factory in Wuhan.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Wall printer buyer’s guide

Data

Specifications

Automatic 3D UV Floor Printer MW-GP200 specifications
Model	MW-GP200
Print head	Epson, double head
Ink	Eco organic ink; UV curing
Ink supply	Negative-pressure system, one supply per colour, 4-colour ink tank
Resolution	360 × 720, 720 × 720, 720 × 1080, 720 × 1440 or 1440 × 2880 dpi
Surface tracking	Bidirectional sensor plus dual ultrasonic head sensors
Frame	Aluminium, folds in half
Drive	Imported servo motors, low-noise drag chain
Control	Wired operation
Image sources	Phone and camera photos, downloaded images
Power consumption	20 W idle, 250 W max
Noise	< 20 dBA standby, < 72 dBA printing

The old sheet gives the machine size as 600 × 5600 × 600 mm, which looks like a typo. Confirm dimensions, floor print width and supply voltage with us.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Ceramic floor tiles
Concrete and car-park floors
Wood boards
PVC
Acrylic
Metal plates

Applications

Decorative floor art
Car-park and garage floors
Shop and showroom floors
Floor logos and wayfinding

FAQ

About this machine

What floors can it print on?

Ceramic tile, concrete and other smooth floor surfaces, plus boards such as wood, PVC, acrylic and metal. Test a small area on sealed or coated floors first.

How large an image can it print?

The machine prints in strips and moves across the floor, so large images are built up section by section. Confirm the print width and maximum image size for your project with us.

How do I move it between sites?

The aluminium frame folds in half and the base runs on wheels.

How is it different from the MW-GP400?

The MW-GP200 is a dedicated floor printer. The MW-GP400 prints both walls and floors with CMYK + white UV ink.
