MW-UP200 automatic wall printer with white cabinet, built-in screen and floor rail

Vertical wall printers

Automatic 3D Wall Printer MW-UP200 (Built-in Computer)

Models · MW-UP200

The MW-UP200 is a foldable direct-to-wall printer with the computer built into the machine, so you do not need a laptop on site. Two Epson heads print 2.5 m high with unlimited width, a bidirectional sensor follows curved and uneven surfaces, and the UV version adds a curing lamp for glass, tile and metal. It draws only 20–250 W and weighs 70 kg with four rails; the MW-UP200T is the same platform with an all-aluminium frame and dual ultrasonic sensors.

Print height
2.5m
Max power draw
250W
Weight with rails
70kg
Max resolution
720 × 1440dpi
Get a quote Test my part on it
  • 2-year whole-machine warranty
  • Free operator training
  • Built to order: voltage, plug, labels
  • Computer built in: no laptop needed on site
  • Two Epson heads; 2.5 m print height, unlimited width
  • Bidirectional sensor follows curved and uneven surfaces
  • Low power draw: 20 W idle, 250 W maximum
  • Folds to fit in a car, van or SUV

Overview

The MW-UP200 is an automatic direct-to-wall printer with its computer built in. You do not need a laptop on site: load a photo from a phone or camera, or a downloaded image, and the machine prints it on the wall. It prints 2.5 m high with unlimited width, moving along its rails band by band.

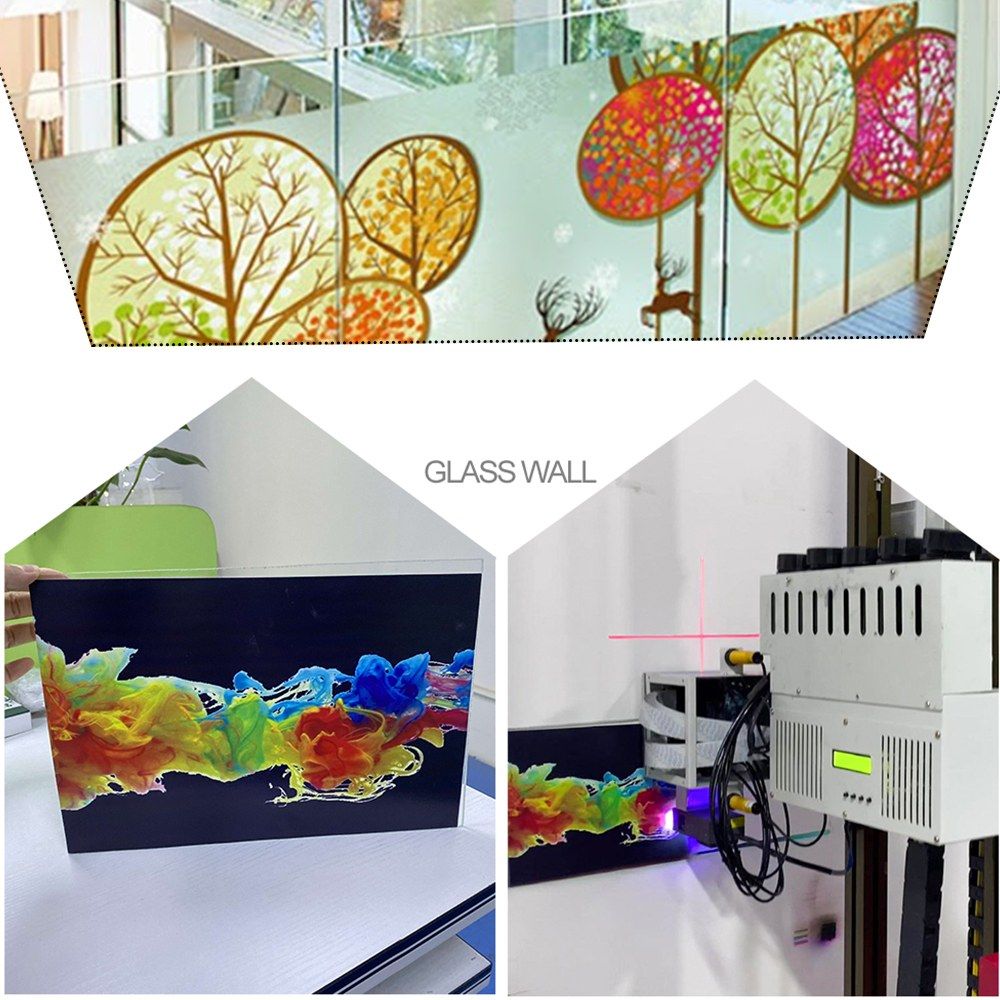

Two Epson heads print at resolutions from 360 × 720 dpi to 720 × 1440 dpi. A bidirectional sensor measures the surface above and below the head, so the printer follows curved and uneven walls. The UV version has a curing lamp, which lets it print fine images on almost any surface. UV prints are waterproof and resist sunlight without a separate protective coat.

Configuration

  • Heads: two Epson heads.
  • Ink supply: negative-pressure system with one supply line per colour and a 4-colour ink tank.
  • Control: built-in computer with wired operation.
  • Power: about 20 W idle and 250 W maximum.
  • Noise: under 20 dBA on standby, under 72 dBA while printing.
  • Size: 800 × 360 × 2500 mm in use; packed in a 900 × 510 × 1500 mm wooden case.
  • Weight: 70 kg (30 kg body plus 40 kg for four rails); 155 kg packed.

The machine folds and fits in a car, van or SUV.

Typical applications

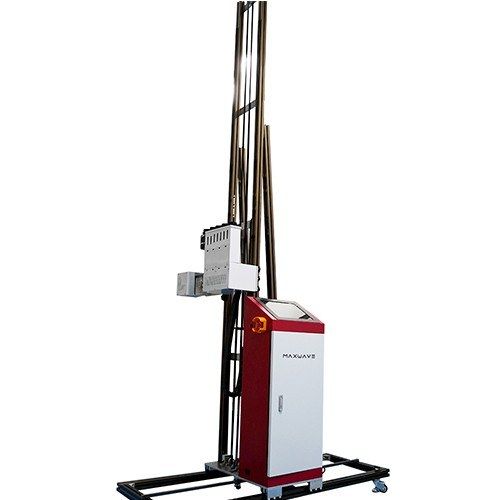

Interior and exterior wall murals, glass partitions and windows, tile feature walls, and decorative boards, acrylic and canvas. The old listings showed it in a white housing and a red-and-white housing.

Options and customization

  • Standard eco ink or UV version with curing lamp.
  • Housing colour.
  • Voltage and plug to suit your country.
  • Upgrade to the MW-UP200T for an all-aluminium frame and dual ultrasonic sensors.

Every printer comes with our 2-year whole-machine warranty and free training at our factory in Wuhan.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Wall printer buyer’s guide

Data

Specifications

Automatic 3D Wall Printer MW-UP200 (Built-in Computer) specifications
ModelMW-UP200
Print headEpson, double head
InkEco organic wall ink; UV version with curing lamp
Ink supplyNegative-pressure system, one supply per colour, 4-colour ink tank
Print size2.5 m high × unlimited width
Resolution360 × 720, 720 × 720, 720 × 1080 or 720 × 1440 dpi
Surface trackingBidirectional (up and down) sensor for curved surfaces
ControlBuilt-in computer, wired operation
Image sourcesPhone and camera photos, downloaded images
Power consumption20 W idle, 250 W max
Noise< 20 dBA standby, < 72 dBA printing
TransportFolding
Machine size (L × W × H)800 × 360 × 2500 mm
Packing size (L × W × H)900 × 510 × 1500 mm
Machine weight70 kg (30 kg body + 40 kg for 4 rails)
Packed weight155 kg, wooden case

Supply voltage is not listed on the old sheet; confirm voltage and ink version (standard or UV) with us.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

  • Putty and latex-paint walls
  • Imitation porcelain walls
  • Rice paper
  • Canvas
  • Wall cloth
  • Glass
  • Ceramic tile
  • Wood boards
  • Acrylic
  • PVC
  • Metal plates

Applications

  • Interior and exterior wall murals
  • Glass partitions and windows
  • Tile feature walls
  • Decorative boards and canvas

FAQ

About this machine

Do I need a laptop to run it?

No. The computer is built into the machine. Load photos from a phone or camera, or downloaded images, and print.

What surfaces can it print on?

Interior and exterior putty and latex-paint walls, imitation porcelain, rice paper, canvas, wall cloth, glass, ceramic tile, wood boards, acrylic, PVC and metal plates. For glass, tile and metal we recommend the UV version with the curing lamp.

What is the difference between the MW-UP200 and the MW-UP200T?

They share the same heads, print size and power figures. The MW-UP200T adds an all-aluminium frame and stand base, dual ultrasonic sensors, imported servo motors and a low-noise drag chain.

How much power does it need?

It draws about 20 W idle and up to 250 W while printing. Confirm the supply voltage for your country when you order.
