MW-GP400 wall and floor UV printer in wall mode: tall mast, red-framed unit and black floor frame

Floor printers

Wall & Floor UV Printer All-in-One MW-GP400 (CMYK + White)

Models · MW-GP400

The MW-GP400 is one machine for two jobs: it prints upright on walls and, reconfigured, flat on floors. Two Epson heads (DX7 as standard; DX10, TX800 or 4720 on request) print CMYK + white UV ink at up to 2880 dpi and 8 m²/h, with a print height of 2, 2.5, 3 or 3.5 m and unlimited width. It is the earlier red-framed 2-in-1 design with the widest choice of heads and heights; the 2025 Track-Type 2-in-1 uses Epson I1600 heads, and the MW-GP200 is a dedicated floor printer.

Print height: 2–3.5m
Resolution: 2880dpi
Print speed: 8m²/h
Colours: CMYK + W

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

Prints on vertical walls and flat floors with one machine
Two Epson heads: DX7 standard, DX10, TX800 or 4720 optional
CMYK + white UV ink: waterproof, weatherproof and scratch-resistant
Print height 2, 2.5, 3 or 3.5 m; width unlimited
Runs with its own PC or connects to your computer

Overview

The MW-GP400 prints murals on walls and graphics on floors with one machine. In wall mode it stands upright on its floor frame and prints vertical bands as it moves along the wall. Reconfigured for floors, it prints flat images on tiles, cement and other floor surfaces.

Two Epson heads print CMYK or CMYK + white UV ink at up to 2880 dpi with a 3.0 pl droplet. White ink lets you print on dark walls and coloured floors, such as black walls or blue floors. Standard speed is 8 m²/h. Print height is 2, 2.5, 3 or 3.5 m, and width is unlimited.

Configuration

Heads: two Epson DX7 heads as standard; DX10, TX800 or 4720 on request.
Ink: UV ink, CMYK + white; cured as it prints, waterproof and scratch-resistant.
Control: use it with or without a PC, or connect your own computer. Software is installed and calibrated before delivery. USB 3.0 data link.
Power: single-phase AC 110–220 V, 50/60 Hz, 2000 W.

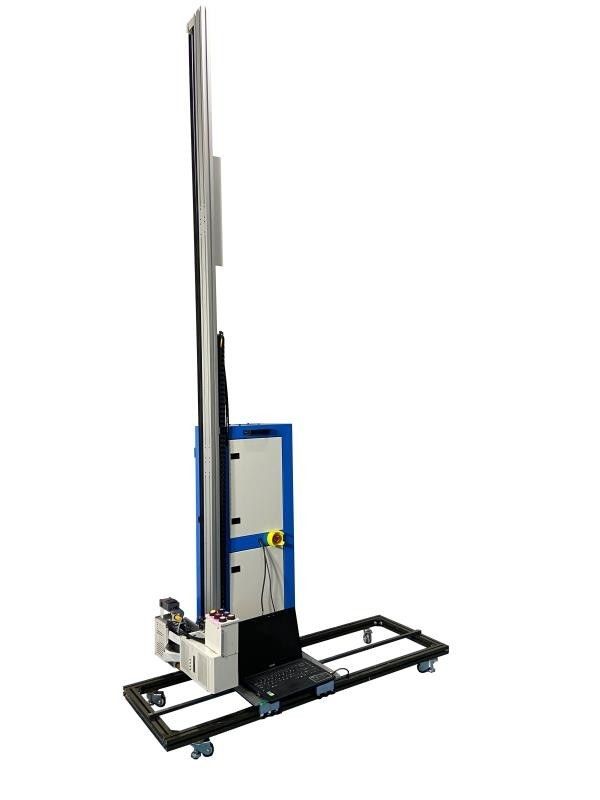

Design: light frame that is easy to move; red or blue frame colour.

We test every machine before shipment.

Typical applications

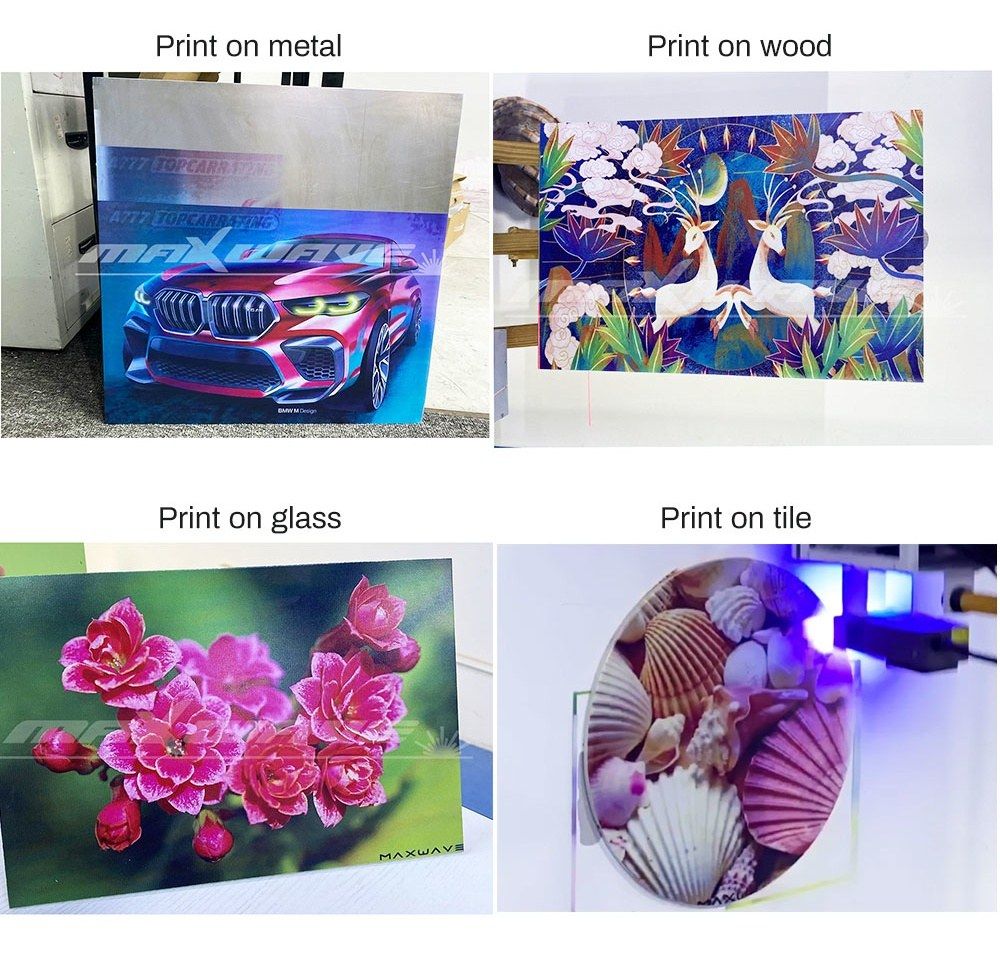

Wall murals and feature walls; decorative floors; floor logos and wayfinding in shops and showrooms. It prints on painted walls, cement, ceramic, glass, metal, wood, plastic and wallpaper.

Options and customization

Print height: 2, 2.5, 3 or 3.5 m.
Head type: DX7, DX10, TX800 or 4720.
CMYK or CMYK + white.
Voltage and plug to suit your country.

The MW-GP400 comes with our 2-year whole-machine warranty: we repair faults and send replacement parts free within the warranty period. Training is free at our factory in Wuhan, with remote support afterwards.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Wall printer buyer’s guide

Data

Specifications

Wall & Floor UV Printer All-in-One MW-GP400 (CMYK + White) specifications
Model	MW-GP400
Type	All-in-one wall and floor printer
Print head	Epson DX7, double head (DX10, TX800 or 4720 optional)
Colour mode	CMYK or CMYK + white
Ink	UV ink
Print size	Height 2, 2.5, 3 or 3.5 m (2.5 m × 6 m standard); width unlimited
Ink droplet	3.0 pl
Resolution	2880 dpi
Print speed	Standard 8 m²/h; high resolution 5 m²/h
Control	With or without PC; connects to your own computer
Data interface	USB 3.0
Power supply	Single-phase AC 110–220 V, 50/60 Hz, 2000 W
Operating temperature	10–35 °C

Weight, packing size and floor print area on request; confirm head and height for your order.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Painted walls
Cement
Ceramic
Glass
Metal
Wood
Plastic
Wallpaper

Applications

Wall murals
Decorative floors
Shop and showroom graphics
Floor logos and wayfinding

FAQ

About this machine

Is it really one machine for walls and floors?

Yes. The same printer works upright for walls and is reconfigured to print on floors, so you buy one machine instead of two.

Which heads can I choose?

Two Epson DX7 heads as standard. DX10, TX800 or 4720 heads are available on request; tell us your output and budget and we will advise.

How durable are the prints?

UV-cured ink is waterproof, weatherproof and scratch-resistant. Outdoor life depends on the surface, sun exposure and any protective coat.

How much area does a set of ink cover?

The manufacturer quotes 120–200 m² per set of ink, depending on image coverage and print mode.

How is it different from the Track-Type 2-in-1?

Both print walls and floors. The MW-GP400 is the earlier design with DX7-family heads and four height options; the 2025 Track-Type 2-in-1 uses Epson I1600 heads on a black aluminium mast.
