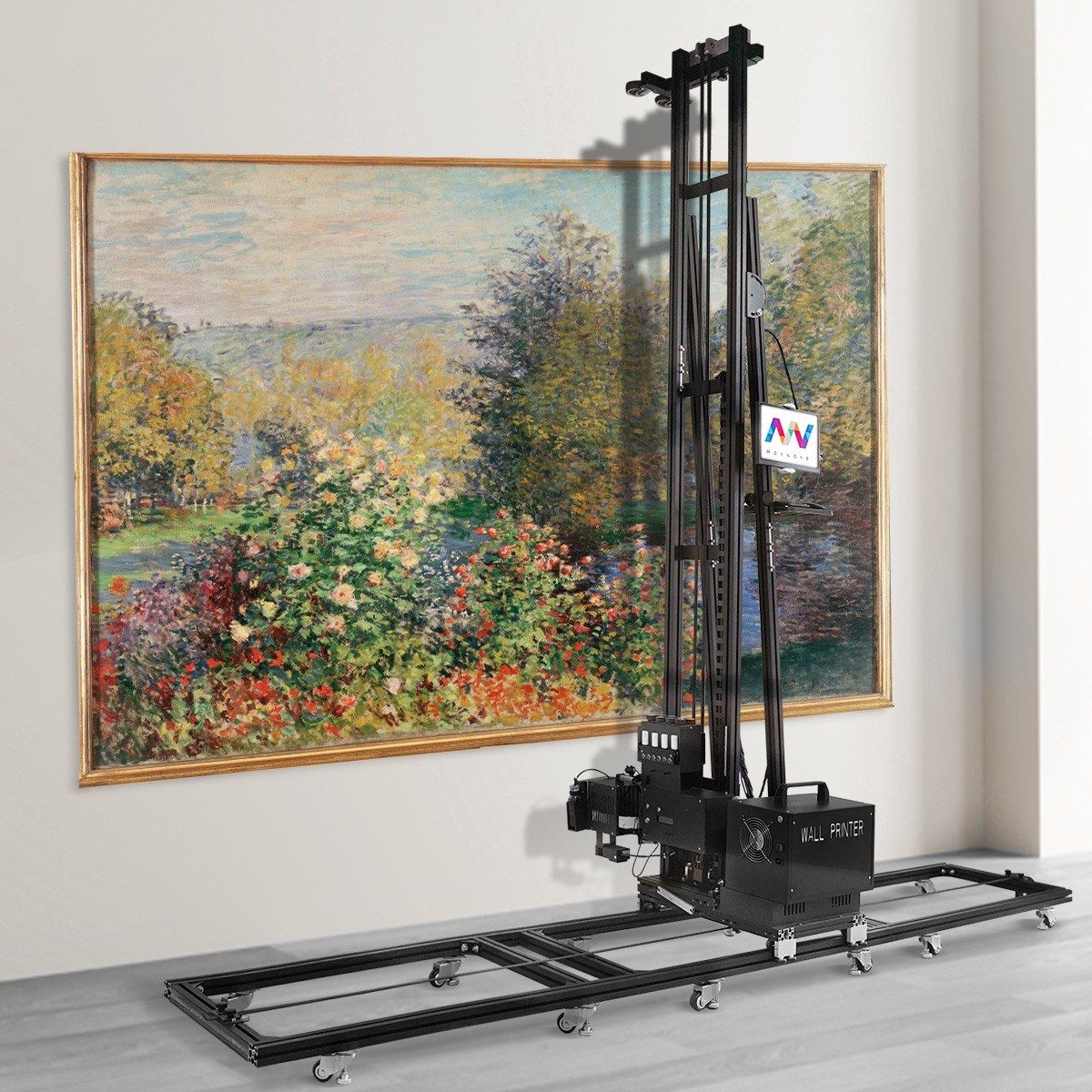

Track-type 2-in-1 wall printer: black mast, base unit marked Wall Printer and wheeled floor track

Vertical wall printers

Track-Type 2-in-1 Wall & Floor UV Printer, Epson I1600 (2025)

A 2025 UV wall printer that runs on wheels along a floor track and converts to floor printing, so one machine covers walls and floors. Two Epson I1600 heads print CMYK + white UV ink at 2880 dpi, 2.5 m high as standard (3.5 m optional) with unlimited width. Compared with the 45 kg wheel-type guide-rail printer it is heavier (120 kg) but taller and floor-capable; compared with the MW-GP400 wall and floor printer it uses newer I1600 heads and an open black aluminium mast.

Print height
2.5–3.5m
Print heads
2 × Epson I1600
Resolution
2880dpi
Machine weight
120kg
Get a quote Test my part on it
  • 2-year whole-machine warranty
  • Free operator training
  • Built to order: voltage, plug, labels
  • Converts between wall printing and floor printing
  • Two Epson I1600 heads with CMYK + white UV ink
  • 2.5 m print height as standard, 3.5 m optional, unlimited width
  • Electric capping station and ink-level alarm
  • Touch-screen PC running Windows 10

Overview

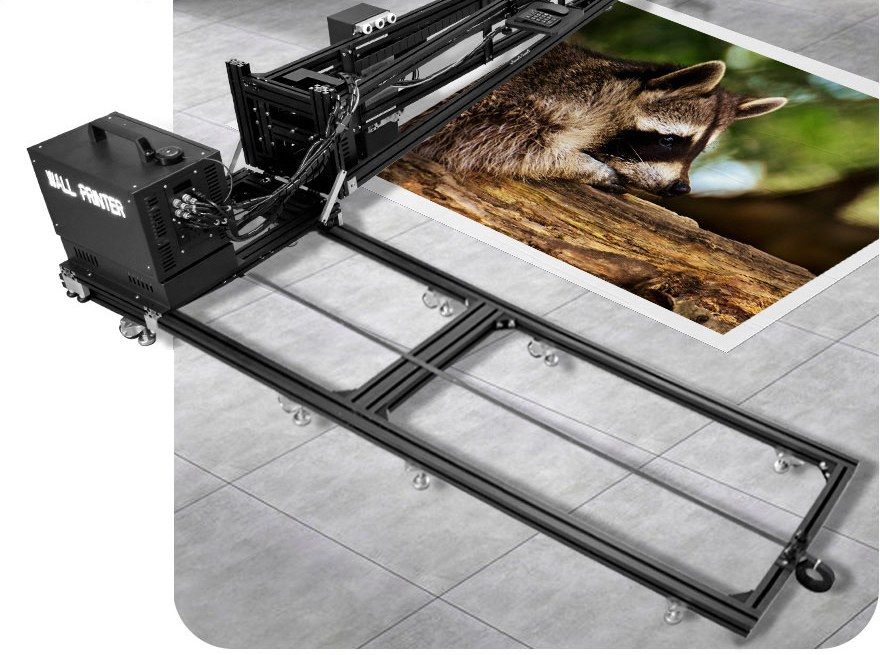

The Track-Type 2-in-1 is our 2025 UV printer for both walls and floors. In wall mode it stands upright on a wheeled floor track. The print carriage runs up the black aluminium mast, prints a vertical band, and the machine steps along the track for the next band. In floor mode the print beam lies horizontally and prints onto the floor below it.

Two Epson I1600 heads print CMYK plus white UV ink at up to 2880 dpi. White ink lets you print on dark walls and floors and add a white base under colours. A UV lamp cures each pass, so the print is dry and handleable straight away. Standard print height is 2.5 m and the standard width is 6 m. A 3.5 m mast is available, and width is unlimited when you extend or move the track.

Configuration

  • Heads and ink: two Epson I1600 heads, CMYK + white UV ink, ink tanks with a liquid-level alarm.
  • Curing: UV lamp box on the print carriage.
  • Positioning: distance sensors keep the head-to-surface gap; a red light marks the start point.
  • Head care: an electric capping station pumps ink and keeps the heads moist when idle.
  • Drive: track and belt drive; the mast nose folds for transport.
  • Control: touch-screen PC running Windows 10; USB 3.0 data link.
  • Power: single-phase AC 110–220 V, 50/60 Hz, 2000 W.
  • Weight: 120 kg machine; ships in a 117 × 75 × 75 cm wooden case.

Typical applications

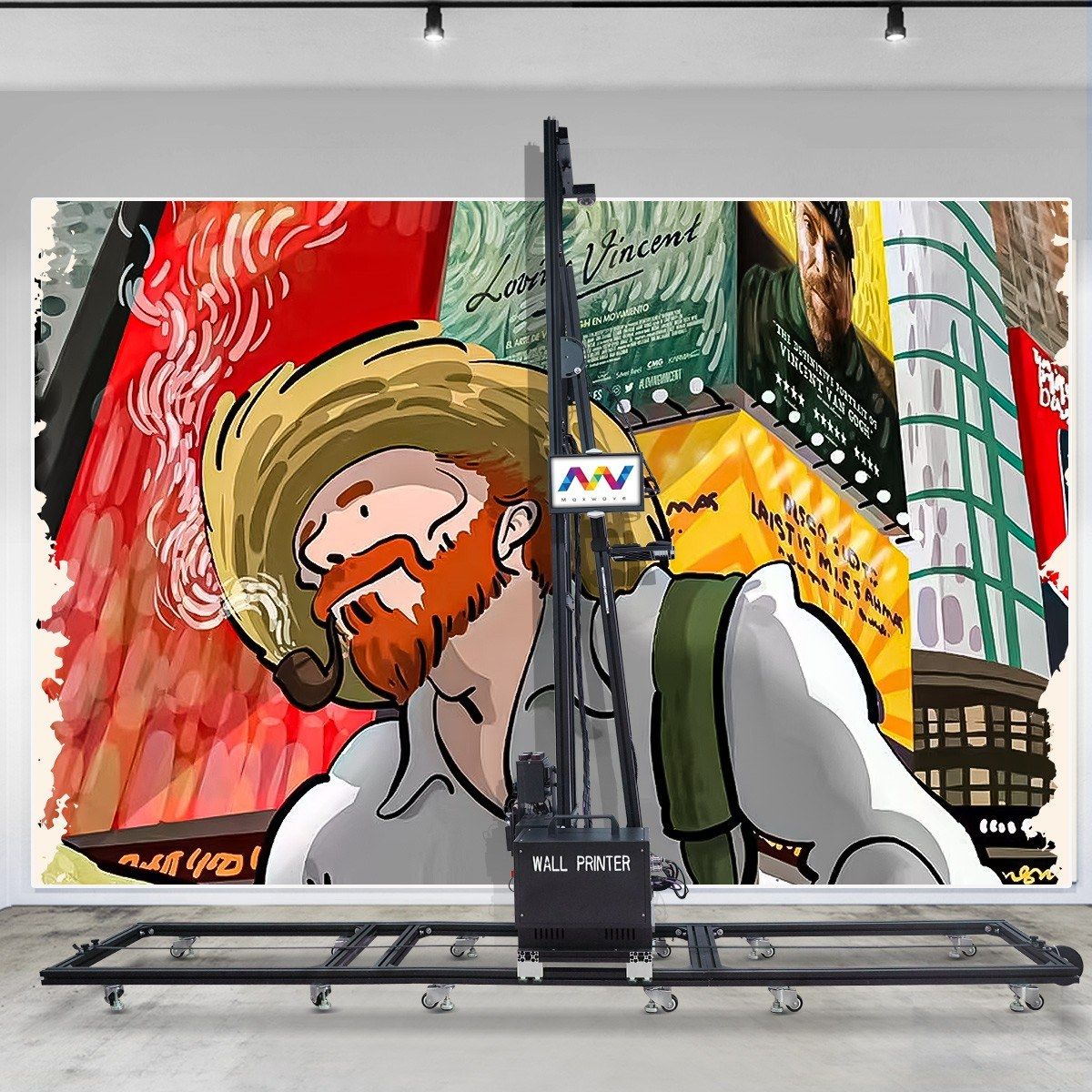

Feature walls and murals in homes, hotels, restaurants and shops; art reproductions on interior walls; floor graphics, logos and wayfinding in showrooms and public spaces. Print speed is 8 m²/h in draft and standard modes and 5 m²/h in high-resolution mode.

Options and customization

  • Print height: 2.5 m standard or 3.5 m.
  • Voltage and plug to suit your country.
  • Housing and track length: tell us your typical wall size and we will confirm the set-up.

Every printer comes with our 2-year whole-machine warranty and free training at our factory in Wuhan.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Wall printer buyer’s guide

Data

Specifications

Track-Type 2-in-1 Wall & Floor UV Printer, Epson I1600 (2025) specifications
Print headEpson I1600, double head
Colour modeCMYK + white
InkUV ink, UV lamp cured
Print size2.5 m × 6 m standard; 3.5 m high optional; width unlimited
Printing modesVertical wall and horizontal floor
Ink droplet3.0 pl
Resolution2880 dpi
Print speedDraft 8 m²/h; standard 8 m²/h; high resolution 5 m²/h
TravelWheels on floor track, belt drive
PositioningDistance sensors and red-light positioning
Head maintenanceElectric capping station
Ink supplyInk tanks with liquid-level alarm
ControlTouch-screen PC, Windows 10
Data interfaceUSB 3.0
Power supplySingle-phase AC 110–220 V, 50/60 Hz, 2000 W
Operating temperature10–35 °C
Machine weight120 kg
Packed weight132 kg
Packing size117 × 75 × 75 cm, wooden case

The spec table gives 132 kg packed, the packing drawing 120 kg. Confirm shipping weight and floor print size for your order.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

  • Painted walls
  • Floor tiles
  • Display boards

Applications

  • Interior feature walls and murals
  • Floor graphics and wayfinding
  • Retail and showroom decoration
  • Art reproductions

FAQ

About this machine

What does 2-in-1 mean?

The same machine prints in two set-ups: upright in front of a wall, or laid horizontally over the floor. We show the change-over during training. Confirm the floor print area you need before ordering.

Which print heads does it use?

Two Epson I1600 heads with CMYK + white UV ink, at a 3.0 pl droplet and up to 2880 dpi.

How heavy is it to move?

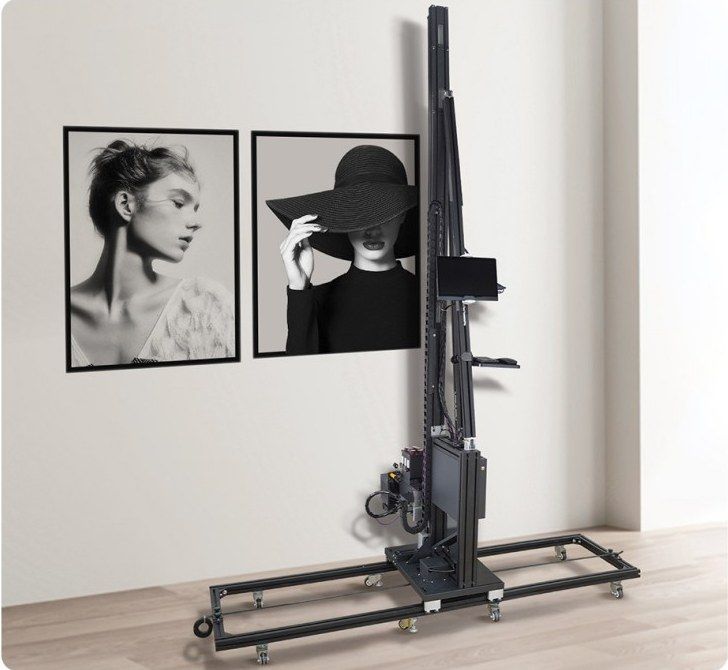

The machine weighs 120 kg and rolls on wheels along its track. It ships in a 117 × 75 × 75 cm wooden case. If weight is your main concern, the wheel-type guide-rail printer weighs 45 kg.

How do the heads stay in good condition between jobs?

An electric capping station seals and moistens the heads when the printer is idle, so you can start printing the next day. Ink tanks have a liquid-level alarm.

How tall can it print?

2.5 m as standard and 3.5 m as an option, with unlimited width.
