MW-UP200T wall printer with blue-and-white cabinet on an extended aluminium floor rail

Vertical wall printers

Vertical Mural Wall Printer MW-UP200T (All-Aluminium Frame)

Models · MW-UP200T

The MW-UP200T is the heavy-duty version of our MW-UP200 automatic wall printer. It keeps the same 2.5 m print height, double Epson heads, 20–250 W power draw and 70 kg weight, but adds an all-aluminium frame and stand base, dual ultrasonic sensors that keep the head-to-wall gap constant, imported servo motors and a low-noise drag chain. Choose it for daily commercial work where frame stiffness and print precision matter.

Print height: 2.5m
Frame: All-aluminium
Max power draw: 250W
Weight with rails: 70kg

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

All-aluminium frame and stand base that resist deformation
Dual ultrasonic sensors adjust the head-to-wall distance automatically
Imported servo motors for accurate, repeatable motion
Low-noise drag chain protects the cables
Two Epson heads; 2.5 m print height, unlimited width

Overview

The MW-UP200T is built on the same platform as the MW-UP200 automatic wall printer, with a stronger mechanism for daily commercial use. The frame and stand base are all aluminium, so the structure stays stable and resists deformation. Dual ultrasonic sensors measure the gap between head and wall and adjust it automatically, which keeps print precision over uneven surfaces.

Two Epson heads print 2.5 m high with unlimited width, at resolutions from 360 × 720 dpi to 720 × 1440 dpi. A bidirectional sensor follows curved surfaces. Imported servo motors drive the axes, and a low-noise drag chain guides the cables, which reduces wear and extends cable life.

Configuration

Heads: two Epson heads.

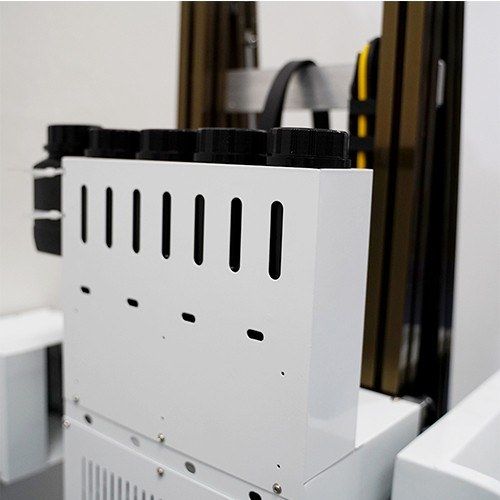

Mechanism: all-aluminium frame and base, imported servo motors, low-noise drag chain.
Sensing: dual ultrasonic head-to-wall sensors plus a bidirectional surface sensor.
Ink supply: negative-pressure system with one supply line per colour and a 4-colour ink tank.
Power: about 20 W idle and 250 W maximum.
Noise: under 20 dBA on standby, under 72 dBA while printing.
Size and weight: 800 × 360 × 2500 mm, 70 kg including four rails; 155 kg packed in a 900 × 510 × 1500 mm wooden case.

Typical applications

Commercial mural studios, interior and exterior wall murals, glass and tile decoration and advertising walls. The UV version prints on glass, tile, metal, acrylic and PVC as well as painted walls.

Options and customization

Standard eco ink or UV version with curing lamp.
Voltage and plug to suit your country.

Every printer comes with our 2-year whole-machine warranty and free training at our factory in Wuhan.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Wall printer buyer’s guide

Data

Specifications

Vertical Mural Wall Printer MW-UP200T (All-Aluminium Frame) specifications
Model	MW-UP200T
Print head	Epson, double head
Frame	All-aluminium structure and stand base
Head-to-wall control	Dual ultrasonic adaptive sensors
Drive	Imported servo motors
Cable carrier	Low-noise drag chain
Ink	Eco organic wall ink; UV version with curing lamp
Ink supply	Negative-pressure system, one supply per colour, 4-colour ink tank
Print size	2.5 m high × unlimited width
Resolution	360 × 720, 720 × 720, 720 × 1080 or 720 × 1440 dpi
Surface tracking	Bidirectional (up and down) sensor for curved surfaces
Control	Wired operation
Power consumption	20 W idle, 250 W max
Noise	< 20 dBA standby, < 72 dBA printing
Transport	Folding
Machine size (L × W × H)	800 × 360 × 2500 mm
Packing size (L × W × H)	900 × 510 × 1500 mm
Machine weight	70 kg (30 kg body + 40 kg for 4 rails)
Packed weight	155 kg, wooden case

Supply voltage is not listed on the old sheet; confirm voltage and ink version with us.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Putty and latex-paint walls
Imitation porcelain walls
Canvas
Wall cloth
Glass
Ceramic tile
Wood boards
Acrylic
PVC
Metal plates

Applications

Commercial mural studios
Interior and exterior wall murals
Glass and tile decoration
Advertising walls

FAQ

About this machine

How does the MW-UP200T differ from the MW-UP200?

Print size, heads, power draw and weight are the same. The MW-UP200T adds an all-aluminium frame and stand base, dual ultrasonic sensors, imported servo motors and a low-noise drag chain for steadier, more precise printing.

What do the dual ultrasonic sensors do?

They measure the distance from the head to the wall and adjust it automatically, so the head stays at the right height over uneven surfaces.

How loud is it?

Under 20 dBA on standby and under 72 dBA while printing. The drag chain is a low-noise type.

What surfaces can it print on?

Putty and latex-paint walls, imitation porcelain, canvas, wall cloth, glass, ceramic tile, wood, acrylic, PVC and metal. Choose the UV version for glass, tile and metal.
