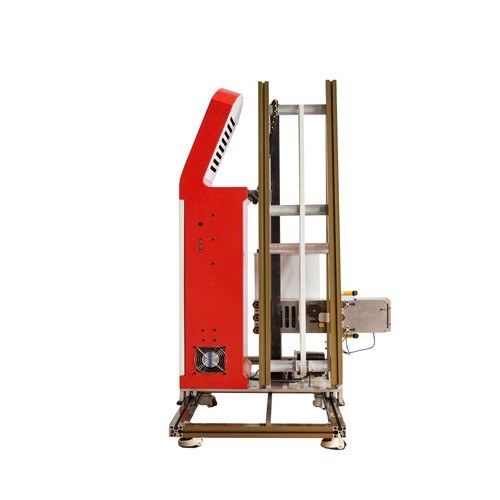

Direct-to-wall printer with red-and-white kiosk, side ink bottles and aluminium floor frame

Vertical wall printers

Direct-to-Wall Printer, 2.1 m Print Height (Pigment Ink)

A compact vertical direct-to-wall printer that paints images up to 2.1 m high with pigment wall-painting ink, run from a laptop and a wired handset. It uses a DC brushless servo drive, draws about 75 W in normal use, stays under 50 dBA and prints 3–6 m²/h. It is lower and slower than our 2.5 m UV models but quieter and lower-powered, which suits painted interior walls in homes, shops and offices.

Print height: 2.1m
Print speed: 3–6m²/h
Typical power: 75W
Max resolution: 720 × 1440dpi

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

Prints 2.1 m high; wider images are printed in panels and stitched
Pigment wall-painting ink with negative-pressure feed and 340 ml reservoirs
DC brushless servo motor with grating positioning
About 75 W typical power draw and under 50 dBA while printing
Quick-release fasteners and pulleys for fast assembly

Overview

This vertical direct-to-wall printer paints images onto interior walls with pigment wall-painting ink. Connect a laptop, load the image and the machine paints it automatically, band by band. Print height is 2.1 m. Width can be extended: images wider than 1.7 m are printed in panels and stitched seamlessly.

Three speed modes trade speed for detail: quick mode at 6 m²/h, production mode at 4 m²/h and quality mode at 3 m²/h. Resolution runs from 360 × 720 dpi to 720 × 1440 dpi.

Configuration

Head: Japanese piezoelectric print head.
Ink supply: negative-pressure automatic feed with 340 ml pigment reservoirs, sealed caps and a dust cover.
Drive: DC brushless servo motor with vector positioning and a grating scale.
Control: wired handset and laptop; dual-core controller with 512 MB memory and USB 2.0/3.0.
Assembly: quick-release fasteners, pulleys and track clamps; no large chassis, so it is easy to take apart and carry.
Power: AC 110 V (90–132 V) or AC 220 V (180–264 V), 47–63 Hz; 20 W idle, 75 W typical, 250 W maximum.
Noise: under 20 dBA on standby, under 50 dBA while printing.
Working range: −10 to 60 °C, 10–80 % relative humidity; the ink needs no heating.

Typical applications

Customised wall decor in homes, shops, cafés and offices, where a quiet, low-power machine is an advantage. It accepts JPG, BMP, TIFF, PDF, AI, PSD and CDR files.

Options and customization

110 V or 220 V supply and plug to suit your country.
Software language: Chinese and English as standard, others on request.

Every printer comes with our 2-year whole-machine warranty and free training at our factory in Wuhan.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Wall printer buyer’s guide

Data

Specifications

Direct-to-Wall Printer, 2.1 m Print Height (Pigment Ink) specifications
Print head	Japanese piezoelectric print head
Ink	Pigment wall-painting ink
Ink supply	Negative-pressure automatic feed, 340 ml reservoirs, sealed caps and dust cover
Print size	2.1 m high; width extendable (panels over 1.7 m wide are stitched)
Resolution	360 × 720, 720 × 720, 720 × 1080 or 720 × 1440 dpi
Print speed	Quick 6 m²/h; production 4 m²/h; quality 3 m²/h
Drive	DC brushless servo motor, vector positioning, grating scale
Control	Wired handset; laptop via USB
Controller board	Dual-core CPU, 512 MB memory, USB 2.0/3.0
Assembly	Quick-release fasteners, pulleys and track clamps
File formats	JPG, BMP, TIFF, PDF, AI, PSD, CDR (some need conversion)
Operating system	Windows XP, 7, 8, 10
Software language	Chinese, English (others on request)
Power supply	AC 110 V (90–132 V) or AC 220 V (180–264 V), 47–63 Hz
Power consumption	20 W idle, 75 W typical, 250 W max
Noise	< 20 dBA standby, < 50 dBA printing
Operating environment	−10 to 60 °C, 10–80 % RH, non-condensing
Storage environment	−30 to 60 °C, 10–80 % RH, non-condensing

Weight and packing size on request; confirm ink and configuration with us.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Painted interior walls
Putty walls

Applications

Home feature walls
Shop and café interiors
Office decoration
Customised wall decor

FAQ

About this machine

How wide can it print?

Width can be extended. Images wider than 1.7 m are printed in panels and stitched together seamlessly.

Does the ink need heating in cold rooms?

No. The pigment ink works without heating from −10 to 60 °C.

How is the printer controlled?

Connect a laptop, load the image and start the job; a wired handset controls the machine at the wall.

How does it compare with the 2.5 m UV wall printers?

It prints lower (2.1 m) and slower (3–6 m²/h), but uses less power and runs quietly, which suits occupied homes and shops. For glass, tile or dark walls, choose a UV model with white ink.
