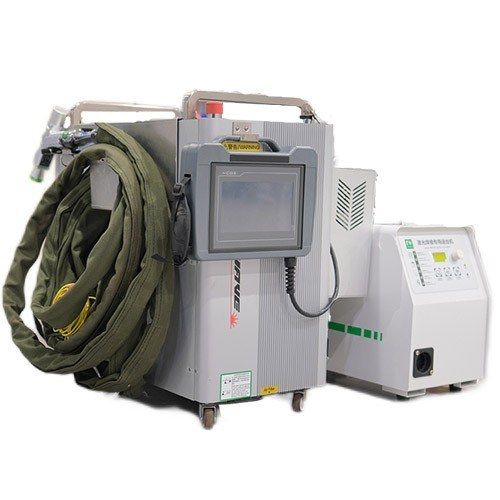

4-in-1 handheld laser welding, cutting and cleaning machine: silver air-cooled cabinet with touch-screen controller, fiber cable and separate wire feeder

Handheld fiber laser welders

4-in-1 Handheld Laser Welding, Cutting and Cleaning Machine 1500 W

A 1500 W air-cooled handheld fiber laser that welds, cuts and cleans with one source. Change the nozzle or head to switch between welding, weld-seam cleaning, rust removal and cutting 1–2 mm sheet. It suits fabrication and repair shops that want one portable machine instead of three.

Laser power: 1500W
Stainless weld: Up to 5mm
Cutting: 1–2mm
Cleaning width: 20mm

2-year whole-machine warranty
Free operator training
Built to order: voltage, plug, labels

Welds stainless steel up to 5 mm and aluminium up to 3 mm
Cuts 1–2 mm metal sheet after a nozzle change
Two cleaning modes: weld-seam cleaning and rust or dirt removal, 20 mm wide as standard
Air-cooled: no water chiller
Supports filler-wire welding with a wire feeder

Overview

This machine combines four jobs in one handheld fiber laser: welding, cutting, weld-seam cleaning and rust or dirt removal. One 1500 W source feeds a handheld head. You change the nozzle, select the mode on the touch screen and carry on working.

In welding mode it joins stainless steel up to 5 mm and aluminium up to 3 mm. The seam is smooth, and new operators learn the technique quickly. After welding, fit the cleaning nozzle to remove discoloration from the seam. The same mode removes rust and dirt in a 20 mm path. With the cutting nozzle, the head cuts 1–2 mm metal sheet.

The machine is air-cooled, with no water chiller. That keeps it small and easy to move between jobs.

Configuration

Laser source: 1500 W fiber laser, 1080 ± 10 nm, continuous or pulsed output, power adjustable from 10 to 100%.
Delivery: 50 µm fiber with QBH connector; 7 m cable as standard, other lengths to order.
Cooling: air cooling.
Controller: touch screen with Weld, Cut, Weld-seam Clean and Remote Clean modes and on-screen assembly guides.
Wire feeder: separate unit for filler-wire welding.
Wear parts: nozzles and protective lenses.

Typical applications

Welding stainless steel and aluminium sheet-metal parts.
Cleaning weld seams straight after welding.
Removing rust, dirt and oxide from steel and aluminium parts.
Cutting openings or trimming 1–2 mm sheet during repair and maintenance work.

Options and customization

Fiber cable length beyond the standard 7 m.
Wide cleaning head and focus lens for a 70 mm cleaning path.
Voltage and plug type for your country.

The machine has a 2-year whole-machine warranty. We train operators free of charge at our factory, and a step-by-step tutorial video for this machine is on our YouTube channel.

Talk to an engineer

Tell us the material, thickness and the result you need. An engineer replies with a matched configuration and a quote.

Send your job details

Need a different setup?

This site shows only part of our range. Other powers and sizes, custom builds and everything around the machine are available on request.

Ask for the rest

Related guide

Choosing handheld welder power

Data

Specifications

4-in-1 Handheld Laser Welding, Cutting and Cleaning Machine 1500 W specifications
Laser power	1500 W
Wavelength	1080 ± 10 nm
Operating mode	Continuous wave or pulsed
Power adjustment range	10–100%
Maximum modulation frequency	20 kHz
Output power stability (continuous wave)	< 3% over 24 h
Output fiber core diameter	50 µm
Output connector	QBH
Fiber cable length	7 m (customizable)
Aiming light	Red
Polarization	Random
Cooling	Air cooling
Welding capacity	Stainless steel up to 5 mm; aluminium up to 3 mm
Cutting capacity	1–2 mm metal sheet
Cleaning width	20 mm standard; 70 mm with optional cleaning head and lens
Modes	Welding, cutting, weld-seam cleaning, remote (rust) cleaning

Welding, cutting and cleaning figures depend on material and setup; send us a sample to confirm results on your parts.

Wuhan Maxwave Laser Technology Co., Ltd. · sales@zerolineai.com · +44 7762 362563 · Specifications may change; confirm your configuration with us.

Fit

Materials & uses

Materials

Stainless steel
Aluminium
Carbon steel

Applications

Sheet-metal welding
Weld-seam cleaning after welding
Rust and dirt removal
Cutting thin metal sheet
Maintenance and repair work

FAQ

About this machine

How do I switch between welding, cutting and cleaning?

Fit the nozzle for the job and select the mode on the touch screen. The controller has Weld, Cut, Weld-seam Clean and Remote Clean modes and shows the assembly steps for each one. For a 70 mm cleaning width you also change the focus lens and fit the wide cleaning head.

How thick can it cut?

1–2 mm metal sheet. Handheld cutting suits trimming, openings and repairs. For regular sheet cutting, a flatbed fiber laser cutter is faster and more accurate.

How wide is the cleaning path?

20 mm with the standard setup, for weld seams and for rust or dirt. A 70 mm width needs a different focus lens and cleaning head.

Can it weld with filler wire?

Yes. The machine supports wire-feed welding with a wire feeder. Filler wire is bought separately to suit your material.

What are the running costs?

The wear parts are nozzles and protective lenses, plus filler wire if you weld with wire. The fiber laser source itself has a long service life.
