Handheld Laser Welding Machine MW-FR1000 (1000 W, wobble head)

Overview

The MW-FR1000 is a 1000 W handheld fiber laser welder for small workshops and mixed production. It needs no fixed welding station and takes little floor space. The operator carries the torch to the part, which suits products that change shape from batch to batch.

The welding head is our own wobble design. It swings the beam across the joint, with a spot width you set from 0.6 to 3.0 mm. That makes the process more tolerant of part and gap variation, and gives a wider, more even seam. Welding depth runs from 0.1 to 3 mm on thin stainless steel, iron and galvanized plate.

Configuration

• Laser source: 1000 W fiber laser (STR), 1064 nm, energy instability under 2%.
• Welding head: in-house wobble head with adjustable spot width and interchangeable nozzles.
• Fiber cable: 10 m as standard.
• Cooling: water chiller (BY1000).
• Power: 380 V ± 10%, 50 Hz, consumption up to 6 kW.
• Duty: rated for 16 hours of continuous work; noise under 60 dB.
• Environment: 13–28 °C and 5–75% humidity.

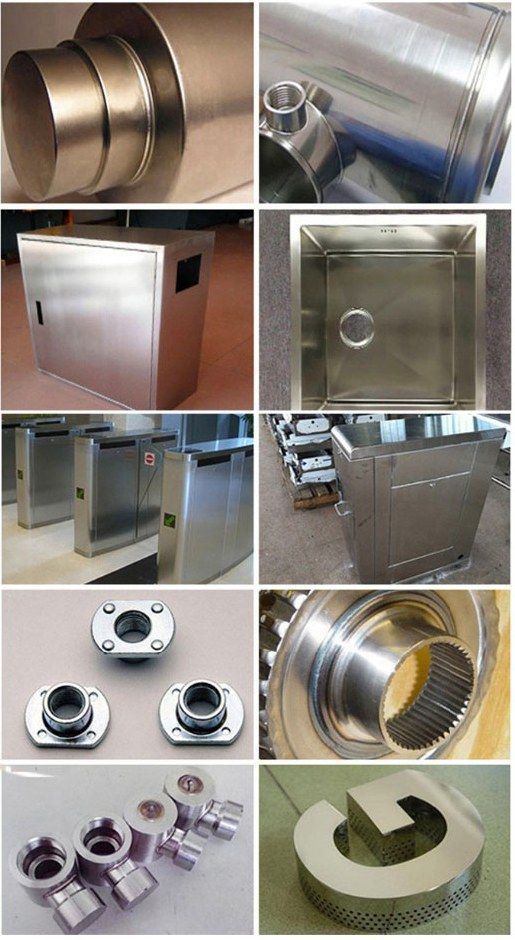

Typical applications

• Kitchenware, sinks and stainless steel cabinets.
• Signage letters.
• Mould repair.
• Pipe fittings, flanges and tube joints.
• Outdoor and on-site jobs where a fixed welding cell is not practical.

Options and customization

• Supply voltage and plug type to suit your country.
• Nozzles for butt, lap, fillet and irregular joints.

The machine has a 2-year whole-machine warranty, and we train your operators free of charge at our factory. Send us a sample part and we can test-weld it before you order.
